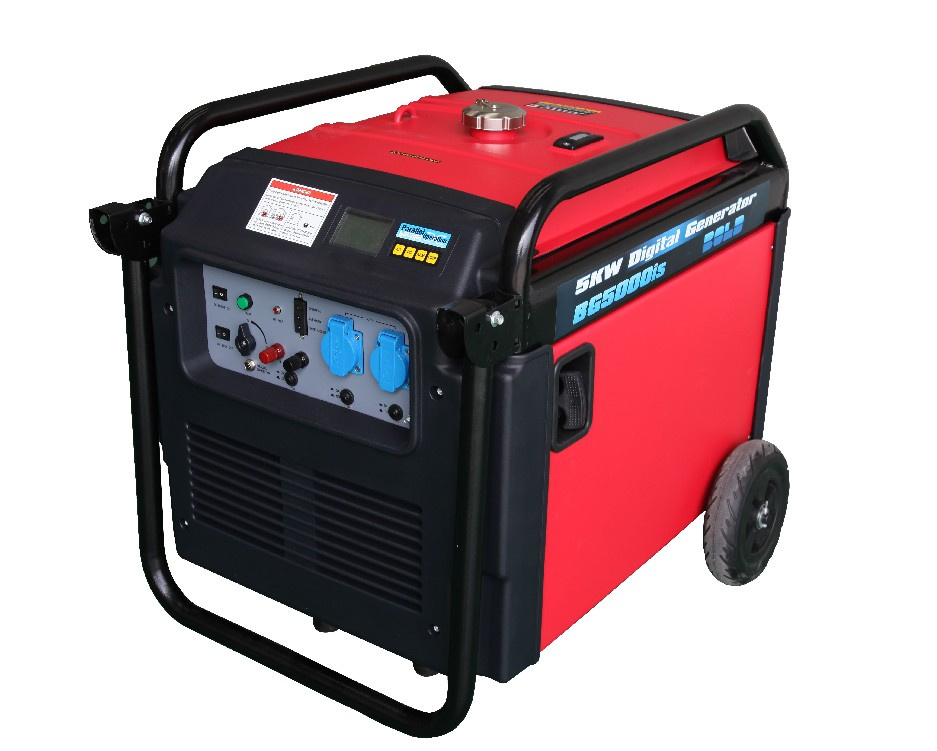

1, Commodity Name: Generator
2, P/N: BG5000is
3, BG5000is+BG5000is -----the output power can up to 10 kW
Company profile:
Our OEM factory is a high-tech enterprise specializing in production of digital inverter generator sets. The company has a team of excellent experts with high innovative capability, who are engaged in the study of gasoline engine, inverter and the structure of the machine. The company holds many patents.
The company has an advanced quality management system, first-class processing equipment and means to perform perfect test and check to ensure the quality of products to market. The company has passed the ISO9001 Quality System certification, and also has achieved for the relevant CE, GS, EPA and VCA certificates.
Product feature:
The BGxxxxis generator has enough motor, reasonable structure, easy maintenance and other features, The series generator has a steady-state voltage, the frequency is extremely stable, is applicable to common and high-precision instruments power options. Its ultra-low mute, lightweight, low-emission, energy-saving, high efficiency. A large number of patents and high-tech applications in the research and development process, such as PFC circuit, identification, adaptive control system, dynamic process optimization techniques. Increased electric control part of the optimizer to reduce the rate of speed fluctuation. The performance of the product has been in the forefront of the domestic, The same level is Japan's YAMAHA
Outstanding Technology:
1, Perfect and stable sine wave output
2, 'us'level short circuit protection3,
3, A powerful mix of load-towing capability
4, Excellent dynameic balance performance
5, A unique LCM display
6, Parallel technology
Model |
BG2000is |
BG3000is |
BG5000is |
Rated frequency(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
Rated output Voltage(V) |
230 |
120 |
230 |
120 |
230 |
120 |
Rated output power(kVA) |
1.6 |
3 |
4.5 |
Max output power(kVA) |
2 |
3.2 |
5 |
Short circuit protection time(us) |
4 |
4 |
4 |
Phase number |
Single phase |
Single phase |
Single phase |
DC output |
12V/8.3A |
12V/8.3A |
12V/8.3A |
Fuel tank capacity(L) |
2.4 |
10.5 |
20 |
run time per tankful(H) |
4 |
7 |
6 |
Noise level(dBA/7m) |
60~65 |
60~65 |
60~65 |
Dimension(L×W×H)(mm) |
480×320×430 |
660×515×510 |
860×610×760 |
Net/Gross weight(kg) |
18/22 |
55/59 |
85/90 |
Engine model |
JF80 |
JF200 |
JF220 |
Engine type |
Single-cylinder,4-stroke, air-cooled, OHV |
OHV25°,single cylinder, air-cooled, 4-stroke |
OHV25°,single cylinder, air-cooled, 4-stroke |
Displacement (ml) |
79 |
196 |
291 |
Bore*Stroke(mm×mm) |
48.6×43 |
68×54 |
80×58 |
Rated speed(r/min) |
4500 |
3600 |
3600 |
Surge power(kW) |
2.3 |
3.6 |
6 |
Fuel type |
Automotive unleaded gasoline |
Automotive unleaded gasoline |
Automotive unleaded gasoline |
Fuel consumption(g/kW.h) |
324 |
395 |
372 |
Oil type |
SAE15W-40 |
SAE15W-40 |
SAE15W-40 |
Oil capacity(L) |
0.41 |
0.6 |
1.1 |
Starting type |
Recoil starting only |
Recoil/electric starting |
Recoil/electric/Remote control starting |
