We are manufacturer and exporter of diesel generator set from China. We make Cummins, Deutz engine with Leroy somer or Stamford alternator silent diesel generator set. GF3 series sound proof diesel generator set.

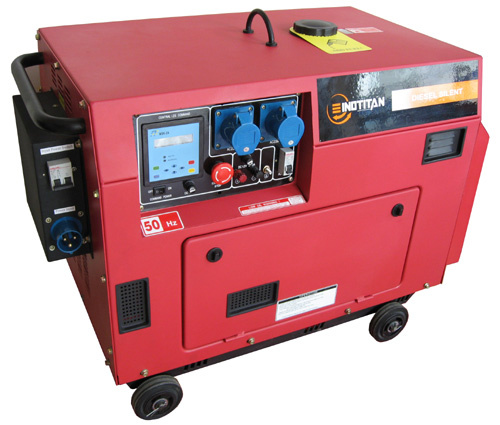

Digital ATS Silent Generator:
*Digital display panel has more functions and protections for generator
*A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
*Electric starter ensures easy starting.
*Low oil pressure alert system shuts down the engine automatically.
*Enclosed structure brings quieter operation for the owner.
*Auto depression unit ensures quick starting
Rated frequency (Hz) 50 60
Rated output(kW) 4. 5 5
Max. Ouput (kW) 5 5. 5
Rated voltage (V) 230/115 240/120
Rated current (A) 19. 6/39. 2 20. 8/41. 7
Rated speed (r/min ) 3000 3600
Phase number Single
ATS type: With ATS
Excitation mode Self-excitation and constant voltage(AVR)
Power factor (cosφ) 1
Pole number 2
Engine model TD186FA
Engine type three-cylinder, 4-stroke, air-cooled, vertical, diesel engine
Bore x stroke (mm) 86 x 72
Displacement (L) 0. 418
Compression ratio 19: 1
Rated power [kW/(r/min)] 5. 7/3000 6. 3/3600
Fuel type #0 (summer) # -10(winter) # -35 (chill cold) diesel
Lube oil brand SAE10W30 (above CC grade )
Fuel consumption( g/kw. H) 275. 1 281. 5
Fuel tank capacity (L) 16
Continuous running time(hr) 9. 5
Overall dimension (mm) (L x W x H) 915 x 547 x 742
Dry weight (kg) 177
Starter system electric starter
Noise level(dBA/7m)(at the rated load) 72
Structure type Silent
Changzhou Titen Power Machinery Co., Ltd. is a leading and professional manufacturer in terms of advanced production machinery and testing devices as well as an updated management team spirit. We specialize in engines, generators, water pumps, power equipment and some other electric components such as industrial plugs and sockets.
With a workshop area of 10, 000 square meters and 180 professional staff, we have got the approval certificates of ISO9001, CE and EPA in some competitive products series such as TD 186F. Titen now has an annual capacity of as many as 300, 000 sets, most of which are exported to the potential markets in the US, Europe, Australia, Southeast Asia, and so on.
Our products enjoy much popularity and credibility among our overseas customers. If you are interested in our products, please feel free to contact us for more information. We are looking forward to cooperating with you in the near future.
