By BrandRicardo Diesel GeneratorHOME > PRODUCTS > Group By Brand > Ricardo Diesel Generator >
Weifang diesel generator set in a mature product that our company uses Weifang series diesel engine matched with well-known generator.with high quality,grafting and changing the foreign (U.K Ricardo) advanced technique ,makes its stability and dependability stronger .Besides, assistanting with perfect after service and abundant fittings supply,which makes it takes up a high share of small and medium-power generator set market.Weichai Ricardo R4105,R6105 series engine is manufactured by the joint venture enterprise of domestic large enterprise Weichai engine factory and the U.K Range of power:24KW-300KW, with steady and competitive price.

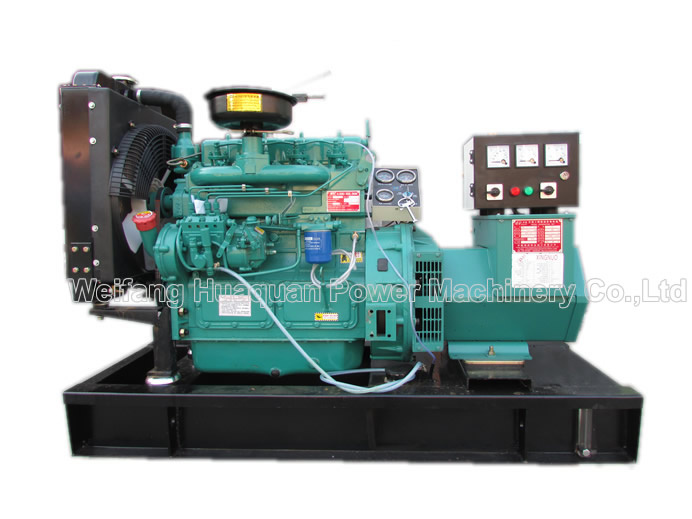

20KW DIESEL GENERATOR DETAILS |
Model | HQR20GF | Start Method | DC 12 |
Generator Prime Power(KW/KVA) | 20/25 | Output Current(A) | 36 |
Standby Power(KW/KVA) | 22/27.5 | Voltage(V) | 400/230 |
Power Factor | 0.8() | Phase | Three phase, Four Wires |
Frequency(Hz) | 50 | Weight(kg) | 550 |
Size(mm) | L | W | G |
1500 | 550 | 1000 |
Diesel Engine Data |
Manufacturer | Ricardo Engine | Model | K4100D |
Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 33 |
Cylinder No. | 4 | Arrangement Type | In-line |
Bore×Stroke(mm) | 100×115 | Displacement(L) | 3.61 |
Intake Method | Natural | Compression ratio | 19.0:1 |
Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤248 |
Oil Capacity(L) | 13 | Start Method | Electrical |
Engine Cooled Method | Radiator Max 40ºC,fans are driven by belt with safety guard. |
Alternator Data |
Manufacturer | China Stanford | Model | XN20 |
Rated Power(KVA/KW) | 20/25 | Excitation Type | Brushless |
Insulation Class | H | Protection Grade | IP22 |
Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
Efficiency (%) | 94.8 | Voltage Control Method | AV |
Weifang(Ricardo) Diesel Generator Set Features:
1. Diesel generator adopt the Weifang original weifang engine(Ricardo engine), as the main power support.
2. Engine adopt UK Ricardo company technology produced by weifang diesel engine company ,in China.
3. Adopt Weichai Power company special diesel fuel pump, cylinder head,piston and filers, and get the same quality as the same as Weichai original engine.
4. Alternator, adopt option brand like China brush alternator, Stamford, Farady, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
