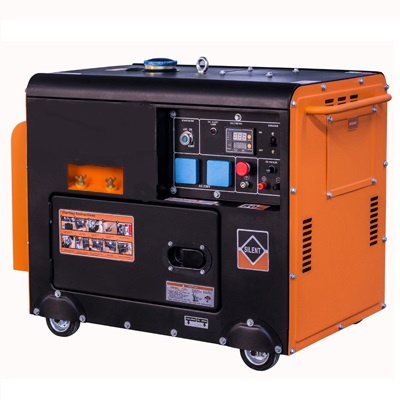

Model No.: TTW5000SE
Frequency 50/60
Rectifying Model mIGBT + Three-phase rectifying bridge (PWM)
Insulation Class F
Max, AC output(KVA) 5.0/5.5
Cont. AC output(KVA) 4.5/5.0
Voltage(V) 220, 240
DC output(V/A) 12/8.3
Welding Voltage@No-load DC(V) 63-85
Welding Operating Voltage(V) 20-30
Rated Welding Current DC(A) 180
Welding Current Adjustment Rang(A) 50-200
Lectrodes Diameter(mm) 2.0-4.0
Welding Load Continuous Ratio 60%
Continous Working S1
Engine Model 186FA
Engine Type Single-cylinder, 4-stroke, air-cooled diesel engine
Cont. Output(HP) 10
Starting System Electric start
Structure Type Closed, silent
Fuel Tank Capacity (L) 16
Operational capacity (hr) 6.5
Noise Level at 7m dB(A) 70
