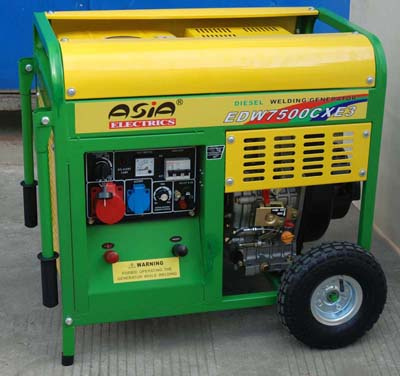

Model: EDW7500CXE
Generating:
Frequency (Hz): 50 / 60
Rated output (kva): 4.5 / 5.0
Rated voltage (V): 120/220/230 / 240
Phase: Single-phase
Power factor: 1. 0
Welding:
Welding voltage at zero load (V): 50
Rated current (A): 180
Working voltage (V): 25-35
Welding load continuous ratio: 60%
Adjustable current range: 50~180A
Rated speed (r/min): 3000(3600)
Dimension (L*W*H)(mm): 730*505*640
Net weight (kg): 111
Engine:
Model: 186FG
Type: Single-cylinder, vertical, 4-stroke, air-cooled, direct injection diesel engine
Displacement (cc): 418
Rated output (Ps/rpm): 810/3600
Fuel tank capacity (L): 12.5
Lube. Oil capacity (L): 1. 65
Starting system: Electric or Recoil
