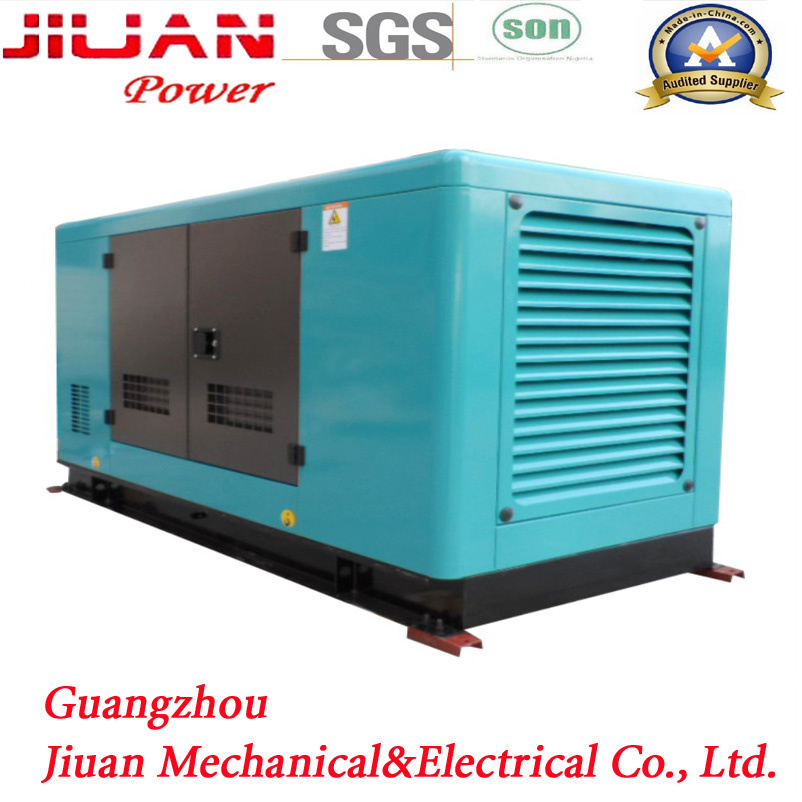

Diesel Silent Generator All Power Brand Generator 20kw 2000kw

We are the professional generator manufacturer with OEM factory in Guangzhou
Many style generators are stock available
10kVA 25kVA 30kVA 60 kVA 100kVA 150kVA 200kVA 250kVA 300kVA 1000kVA available
Specifications
1.25kVA 4 cylinder water cooled generator with canopy
2. Generator Super silent 65 DB
3. Auto panel
4. Four Protection
25kVA 4 cylinder water cooled generator with canopy
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel

Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 50kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

* Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck

Diesel Generator Set 25KVA
Generator Specifications	Generator Model	CDC20KW/25KVA
	Generator Prime Power	20KW/25KVA
	Generator Standby Power	22KW/27.5KVA
	Generator Engine Model	DCEC Brand New Cummins
	Generator Alternator	Stamford;Marathon;Leroy Somer;Faraday;Stamford copy
	Canopy for Choice	Super silent;Silent;Open frame;Trailer
	Controller	Smartgen or Deepsea
	Dimensions (L*W*H)	2300*1000*1400mm=2.33CBM
	20FT/40HQFT Container	2PCS/4PCS
Generator Warranty	1800 hours or 1 year subject to the ealier one.
Generator MOQ	1PCS
Certificate	SGS;Cummins Authorized Factory;TUV;Soncap
Payment	T/T or Cash
Please give detail needs in your inquiry, so that we can make power solutions for you.

MODEL	CD-C20KW/25KVA
Powered by Cummins Engine
Prime Power (50HZ)	20KW/25KVA
Standby Power (50HZ)	22kw/27.5KVA
Power Factor	0.8 (Lagging)
Phase Wires	3-phases 4-Wires
Start Model	Electric
Protection	Low oil-pressure, High water temperature, Over-speed, Over-current
Engine Model	DCEC Cummins 4B3.9-G1 4 Cycle
Cylinders	4
Cylinder Arrangement	L
Bore x Stroke(mm)	102X 120
Compression Ratio	16.5:1
Speed	1500rpm
Cooling Method	Water – cooled
Starting Method	24V DC electrical start
Full Load Diesel Consumption (L/H)	6
Engine Displacement (L)	3.9
Inspiration  (L)	Natural
Lube Volume  (L)	9.5
Coolant Volume  (L)	20
Noise (Db)	≤ 80
Alternator Model	Newage Stamford PI144E or Leadtech LTG184F
Alternator Power	20KW/25KVA Brushles with AVR
Voltage	380/220V,400/230V,415/240V,220/127V
Protection	IP23
Voltage Regulation	±4%
Insulation Class	H
Voltage Control	AVR
Net Weigh (KGS)	950
Dimensions (L x W x H) mm	2300*1000*1400(S) 2600*1100*1650(Super Silent)
Controller	Smartgen 6110 or Deepsea 7320
Standard	Muffler * 2PCS
	Battery 80A * 2 PCS
Optional	ATS (auto transfer switch)
	AMF(auto mains failure)
	Trailer
