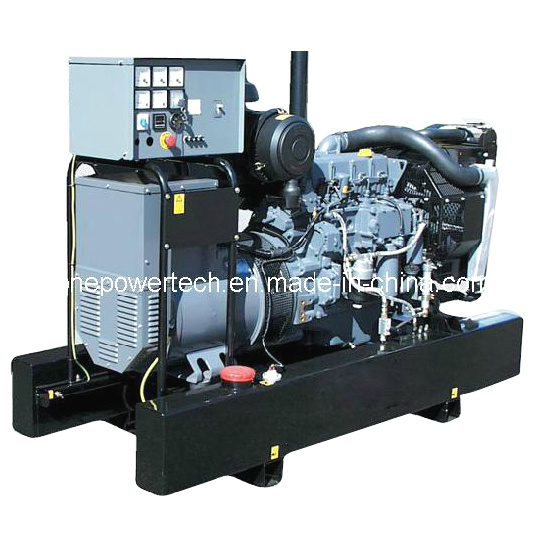

Etone Deutz series diesel genset, Generator set are powered by Deutz Engine
The main feature of Genset
3-pH, 50Hz@1500RPM, 400/230V(Other voltage ranges are available)
Compacted power units
Composed of DEUTZ four cycle, water cooled diesel engine and Etone alternator
Cooling radiator and fan
Electronic governor
Electrical 12V DC starter & charge alternator motor
Normal duty, dry type air filter.
Brushless, Self-excited, IP23, Insulation class H and single bearing alternator
Digital auto-panel control system with emergency stop press bottom
Welded steel base frame with A/V mounting
Flexible fuel connection hoses and lube-oil drain hand pump fitted
Starter batteries with cables and rack
Industrial type silencer and steel bellows delivered loose
Mounted main circuit breaker
Soundproof canopy or container, 8 hours working bottom fuel tank and engine jacket water heater are optional available on the whole range
According with standards of ISO8528, ISO3046, ISO3046, ICE34-1GB/T2820-97, GB755.
|
Prime Power |
150KW/188KVA |
Standby Power |
166KW/208KVA |
|
Rated Speed |
1500RPM |
Frequency |
50Hz |
|
Phase |
3 Phase 4 Wires |
Rated Voltage |
400/230V |
|
Engine Model |
BF6M1013FCG2 |
Alternator Model |
LSA46.2M5 |
|
Steady Voltage Deviation |
≤ ± 1% |
Transient Voltage Adjustment· Recovery Time (Sudden deducting / Increasing load) |
≤ +20% · 4s / -15%· 4s |
|
Steady Frequency Drop |
≤ 2% |
Transient Frequency Adjustment · Recovery Time (Sudden deducting / Increasing load) |
≤ +10% · 3s / -7%· 3s |
|
Dimension Open Type |
2750x1120x1710 |
Gross Weight |
1900 |
|
Dimension Silent Type |
2910x1300x2160 |
Gross Weight |
2200 |
