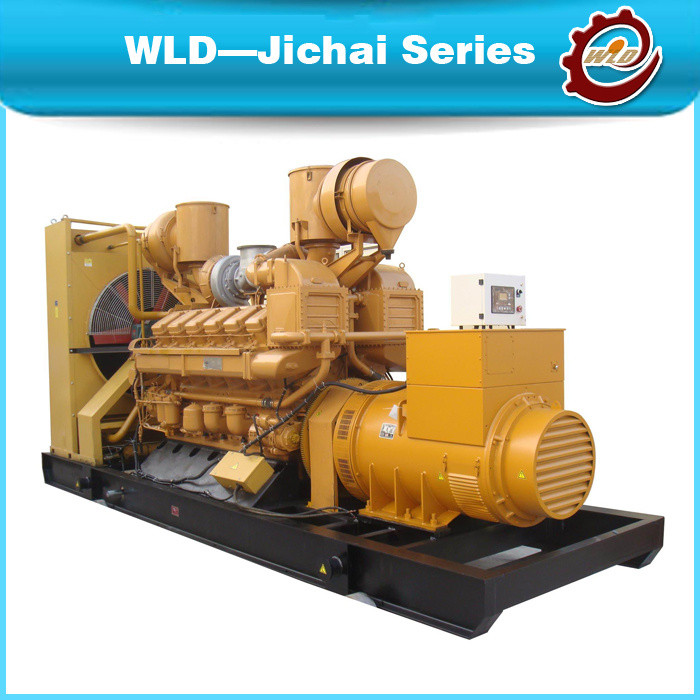

800kw/1000kva Jichai diesel power generators Specification:
Genset specifications:
- Model: Dj800
- Dimensions: 5, 150 x 1, 650 x 2, 700mm
- Weight: 8, 280kg
- Prime power: 800KW
- Rated current: 1, 440A
- Rated voltage: 400/230V
- Speed: 1, 500/1, 800rpm
- Frequency: 50/60Hz
- Output type: AC three phase
- Power factor (Cos Phi): 0.8
- Altitude: ≤ 1, 000m
- Base fuel tank: Eight hours (Standard)
- Standards: JB/T 1403-1999, GB/T 12501-1990
- Warranty: 1 year or 1, 500 running hours
- Engine specification:
- Engine model: Z12V190B
- Type of governor: Electronic governor
- Type: V 12 cyclinders
- Bore x stroke: 190 x 120mm
- Compression ratio: 17.3: 1
- Voltage regulation: ± 0.5%
- Fuel consumption rate (g/kw. H): ≤ 209g/kw. H
Alternator Specification:
- Brands: Stamford, Simens, Marathon, Farady at option
- AVR model: R448 V50
- Number of phases: 3
- Over speed: 2250rpm
- Exciter type: AREP
- Sustained short circuit current 300% (3 IN): 10s
- Insulation class: H
- protection class: P22/IP23
- Total harmonics (TGH/THC): <3.5%
- Wave form NEMA = TIF: <50
- Wave form I. E. C. = THF: <2%
- Bearing: Single
- Coupling: Direct
Control panel:
- Automatic control panel(AMF), LED display
- Four protection systems
- Emergency stop
- DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- ATS (automatic transfer switch)
- Water heater
- Parallel system
- Remote system
Soundproof/silent box:
- Excellent ventilation
- Fuel tank mounted on baseframe for 12-hour working
- Highly corrosion resistant construction
- Excellent access for maintenance
- Security and safety
- 1m<80DBA/7m<70DBA
