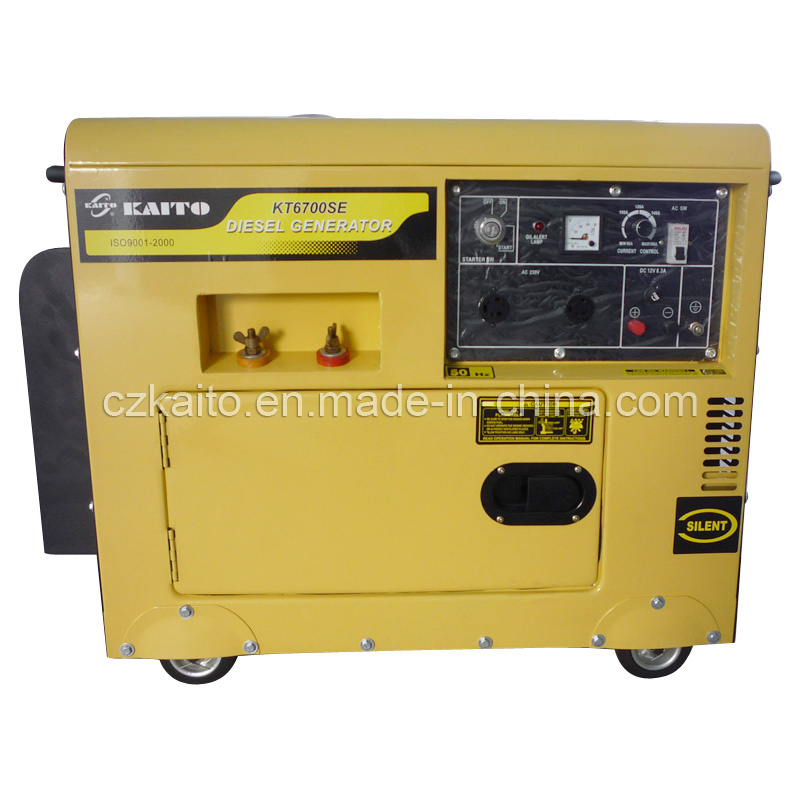

1. Diesel Generator KT6000SEW with the welding.
2. It is silent type.
3. WITH KT186FA ENGINE
4. With CE certification
5. Manufacturer's price
Changzhou Changchai Group Kaito Electricity Machinery Co., Ltd. is the backbone member and manufacturing base for export products of Changchai Group. Changchai Group, with 10000 employees and total annual output value worth of USD 300 million and yearly export volume worth of USD 80 million, is on the list of China's top 500 groups.
Changchai Group Kaito Electricity Machinery Co., Ltd. 's main products line on Japanese Yammar series super air- cooled Diesel Engine, and its coupled Diesel Generator Set, Water Pump Set and Digital Inventer Generator. Our company is very good at producing diesel engines and diesel generators. We have more than 100 years' history for producing engines. Our productions are more stable, cheaper and better quality.
Our advantages:
1. With CE, EPA certification and so on
2. We produce engine more the 100 years
3. Our AVRs are more steady
4. Our productions range from 2KW to 2000KW
5. Our dynamotors are 100% copper
6. We can Design and increase ATS, digital panel, three phase, Conforming to the EPA authentication, heater, counter, S type output and any other equipment you need.
7. Our guarantee is more than 3 years.
8. Our engine passed the continual 1000 hours running test.
|
Rated frequency(Hz) |
50/60 |
|
Rated power(kW) |
2.0/2.2 |
|
Rated voltage(V) |
230 240/120 |
|
Rated current(A) |
12.2 11.7/23.3 |
|
No. of phase |
single |
|
Power factor(cosφ ) |
1 |
|
Weldling voltage at zero load(DC)(V) |
60-65 |
|
Rated weldling current DC(A) |
160 |
|
weldling voltage(DC)(V) |
25-30 |
|
Weldling load continous ratio |
60% |
|
Weldling current adjustment range(A) |
50-180 |
|
Electrode(mm) |
1.6-4.0 |
|
Rated speed(r/min) |
3000/3600 |
|
Excitaion mode |
Self-excitation and constant voltage(AVR) |
|
Insulation grade |
F |
|
Pole number |
2 |
|
Engine model |
KT186FA |
|
Engine type |
Single cylinder, vertical, four-stroke, air-cooled |
|
Displacement(ml) |
418 |
|
Bore× stroke(mm) |
86× 72 |
|
Compression ratio |
19: 01 |
|
Rated power kW(r/min) |
6/3000 6.5/3600 |
|
Fuel type |
0#(summer), -10#(winter), -35#(chill cold) light diesel |
|
Lube oil brand |
SAE10W30(above CC grade) |
|
fuel consumption(g/kw. h) |
340 |
|
Fuel tank capacity(L) |
16 |
|
Continous running time(hr) |
10 |
|
Overall dimension(mm)(L× W× H) |
910× 520× 740 |
|
Dry weight(kg) |
178 |
|
Starting system |
Electric starter |
|
Noise level (at rated load) dB(A)/7m |
73 |
|
Structure type |
silent |
Changzhou Changchai Group Kaito Electricity Machinery Co., Ltd. is the backbone member and manufacturing base for export products of Changchai Group. Changchai Group, with 10000 employees and total annual output value worth of USD300 million and yearly export volume worth of USD80 million, is on the list of China's top 500 groups.
Changchai Group Kaito Electricity Machinery Co., Ltd. 's main products line on Japanese Yammar series super air- cooled Diesel Engine, and its coupled Generator Set, Water Pump Set and Digital Inventer Generator. The company now possess of well-known trade marks CHANGCHAI and KAITO. All its subsidiaries like Machinery Factory, Foundry Factory and Generator Factory as manufacturing bases have been awarded ISO 9001-2000 Quality Management System Certificates. Its KAITO brand Diesel Generator Set model KT5000SE, KT5000LE, Digital Inventer Generator KT1000T series and Diesel Engine Model 186F, have got CE approval by TUV company from Germany, American EPA certificate respectively. All of its products are for export. At present its products are well received in American, European, African and Southeast Asian countries and regions.
Supported by Changchai Group 's first class technology, great management strength, and qualified talent, By keeping on optimizing design and perfecting management system, the company is ready to provide excellent products and service to international markets.
with the motto of "commitment, cooperation, Endeavor", the company is looking forward to having business discussion with potential customers all over the world on mutual benefits.
