Diesel Generator with CE Andiso9001 (DG6LN-3P New Style)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T |

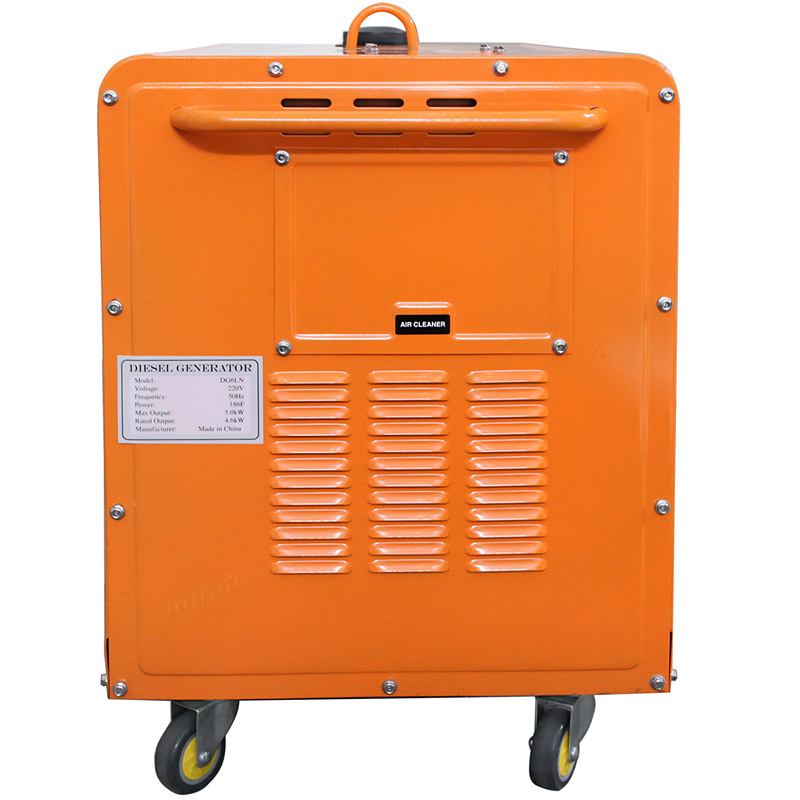

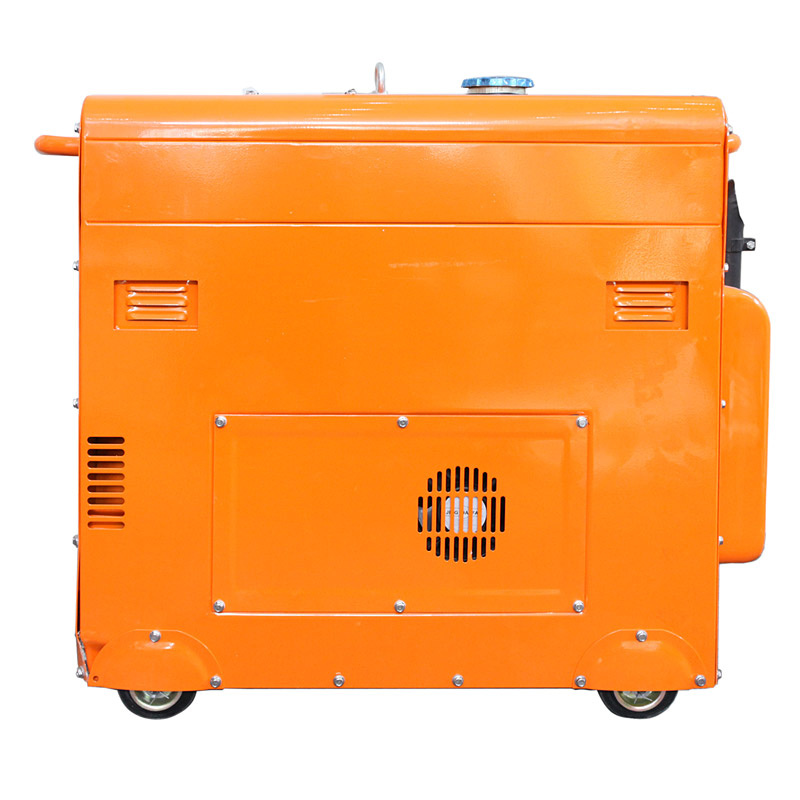

DIESEL GENERATOR SET
Introduction
Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW Structural style: Open type, semi-open type, silent type. Single phase or three phase. Have CE(CONFORMITE EUROPEENNE) certificate. Have steady quality and competitive price. Sincerely welcome you to establish long-term cooperation with us, to create a bright tomorrow!
Diesel Generator with CE andISO9001(DG6LN-3P)
Diesel Generator:
STANDARD FEATURES
Voltmeter yes
AC Output Socket: 2
AC circuit breaker: Yes
Low Oil alert: Yes
Timemeter: Yes
Big Wheels: Yes
OPTIONAL FEATURES
ATS optional
Remote control optional
Battery: Optional
Heater: Optional
Fan: Optional
Advantages
1. Diesel generator set with CE certificate
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
Model |
DG6LN-3P |
Frequency [HZ] |
50/60 |
Rated voltage [V] |
110/220/ 230/115 |
Rated output power [Kw] |
4.5/50Hz, 4.8/60hz |
Max output power [Kw] |
5/50hz, 5.5/60hz |
Rated rotation speed [rpm] |
3000/3600 |
DC output |
12v/8.3A |
Phase number |
Three |
Noise level [dB(A)@7m] |
72 |
Overall dimension(LxWxH)[MM] |
965x565x725 |
Dry weight[kg] |
160 |
Structure type |
Silent |
Excitation model |
Self-excitation with brush, 2 poles |
Engine Model |
ETK186FAE |
Engine Type |
Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine |
Cooling type |
Force air-cooled |
Bore x Stroke [MM] |
86x72 |
Displacement[ml(cu. In)] |
418(25.51) |
Rated power[KW(hp)/rpm] |
6.0(8.0)/3000 6.6(9.0)/3600 |
Max power[KW(hp)/rpm] |
6.1(8.3)/3000, 6.8(9.3)/3600 |
Starting system |
Electric start |
Rotation direction(view from flywheel) |
Clockwise |
Fuel Tank Capacity [L] |
15 |
Lube-oil Capacity [L] |
1.65 |
Prod Model: |
DG6LN-3P |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cooling Method: |
Wind Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Portable |
Type: |
Basic Diesel Generator |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
