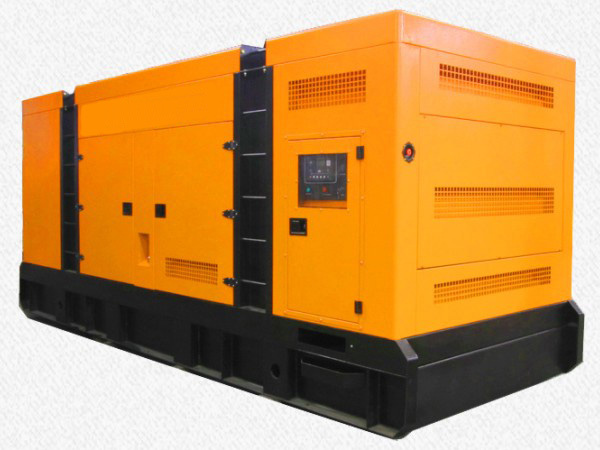

Diesel Generator Super Silent Type Powered by Perkins Engine (YMP-200)
| Price: |
US $ 3000-50000PCS |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1PCS |
| Pay Type: |
L/C,T/T,D/P |
120KW/150kVA Perkins Soundproof Diesel Generator Set (YMP-200)1. 10KVA~2250KVA Generator / Diesel Generator / Silent Generator2. Powered by Perkins Engine3. With Stamford / Leroy Somer / Marathon Alternator4. With CHINT / ABB MCCB & Electronic Components5. Electric Start with Battery6. Base Integrated Fuel Tank7. ATS, Deepsea / ComAp / Smartgen Controller8. Comply with ISO8528/GB2820UK Origin Perkins Series Diesel Generators Power From 10KW up to 1500KW, with compacted structure and best configuration. General Data SheetEngine and alternator mounted on the same frame steel skid. Built-in damper for anti-vibration. Small size, low weight, easy to operate, installation and maintenance. World most famous brand diesel engine. UK origin Perkins series engine. World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etcAdvanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485Full range protect function and alarm shutdown feature. ATS, Base Fuel Tank as Options. Control SystemsStandard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears. LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory. LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets. ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage andFrequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled. EngineHeavy duty diesel engineFour stroke, water cooled12V and 24V stater and charge alternatorCooling radiator and fanMaintenance free battery including ract and cableFlexible fuel connection hoses and manual oil sump drain valveExhaust silencerAlternatorBrushless, single bearing, flexible discInsulation class: HProtection class: IP23Self-exciting and Self-regulationCanopyAll canopy designed with modular principlesAll metal canopy parts painted by electrostatic polyester power paintSoundproof design ensure that the noise level be controlled in small scopeConvenient to lift and moveEasy to maintenance and operateBase FrameBase frame including position for forklift and craneIntegral fuel tankDaily fuel tank continuously supply for 8-24 hoursFuel tank easy to maintain and cleanAnti-vibration pads are flexed between engine and alternator. Control SystemControl, monitor and protect the Generator Set including: High water temperatureLow oil pressureOver and under speedOver currentUnder/Over generator voltageStart and stop failureLow and high battery voltageCharge failEmergency stopCompany
Specification| | Frequency 50HZ | PERKINS | Dimension ( L * W *H ) |
| Diesel Engine | (cm* cm * cm) |
| Model | Standby | Prime | | Open Type | Soundproof |
| (KVA/KW) | (KVA/KW) | |
| YMP-10 | 11/8.8 | 10/8.0 | 403D-11G | 140*55*110 | 185*100*120 |
| YMP-12.5 | 14/11 | 12.5/10 | 403D-15G | 140*55*110 | 185*100*120 |
| YMP-20 | 22/17.6 | 20/16 | 404D-22G | 145*65*120 | 215*100*127 |
| YMP-25 | 27.5/22 | 25/20 | 404D-22TG | 145*65*120 | 225*100*127 |
| YMP-30 | 33/26.4 | 30/24 | 1103A-33G | 165*75*125 | 250*100*157 |
| YMP-40 | 44/35.2 | 40/32 | 1103A-33TG1 | 175*75*125 | 260*100*157 |
| YMP-45 | 50/40 | 45/36 | 1103A-33TG1 | 175*75*125 | 260*100*157 |
| YMP-50 | 55/44 | 50/40 | 1103A-33TG2 | 175*75*125 | 260*100*157 |
| YMP-60 | 66/52 | 60/48 | 1103A-33TG2 | 175*75*125 | 260*100*157 |
| YMP-65 | 71.5/57.2 | 65/52 | 1104A-44TG1 | 185*90*135 | 281*106*168 |
| YMP-80 | 88/70.4 | 80/64 | 1104A-44TG2 | 185*90*135 | 281*106*168 |
| YMP-90 | 100/80 | 90/72 | 1106TG1A | 230*96*148 | 320*116*184 |
| YMP-100 | 110/88 | 100/80 | 1104C-44TAG2 | 230*96*148 | 320*116*184 |
| YMP-130 | 143/114 | 130/104 | 1006A-70TG1 | 230*96*148 | 320*116*184 |
| YMP-150 | 165/132 | 150/120 | 1006TAG2 | 230*96*148 | 320*116*184 |
| YMP-180 | 198/158.4 | 180/144 | 1106C-E66TAG4 | 240*98*160 | 340*120*90 |
| YMP-200 | 220/176 | 200/160 | 1106A-E70TAG4 | 250*100*165 | 350*135*195 |
| YMP-230 | 253/202 | 230/184 | 1306C-E87TAG4 | 250*100*165 | 360*135*195 |
| YMP-250 | 275/220 | 250/200 | 1306A-E87TAG6 | 250*100*165 | 370*135*195 |
| YMP-300 | 330/264 | 300/240 | 1606A-E93TAG5 | 300*115*198 | 370*135*195 |
| YMP-350 | 385/308 | 350/280 | 2206A-E13TAG2 | 340*115*198 | 440*145*225 |
| YMP-400 | 440/352 | 400/320 | 2206A-E13TAG3 | 340*115*198 | 440*145*225 |
| YMP-500 | 550/440 | 500/400 | 2506C-E15TAG1 | 380*125*210 | 470*185*225 |
| YMP-500 | 550/440 | 500/400 | 2506C-E15TAG2 | 380*125*210 | 470*185*225 |
| YMP-600 | 660/528 | 600/480 | 2806A-E18TAG1A | 390*160*220 | 540*190*225 |
| YMP-625 | 687.5/550 | 625/500 | 2806C-E18TAG2 | 390*160*220 | 540*190*225 |
| YMP-700 | 770/616 | 700/560 | 4006-23TAG2A | 460*180*225 | 606*224*260 |
| YMP-750 | 825/660 | 750/600 | 4006-23TAG2A | 460*180*225 | 560*190*225 |
| YMP-800 | 880/704 | 800/640 | 4006-23TAG3A | 540*165*245 | 560*190*225 |
| YMP-1000 | 1100/880 | 1000/800 | 4008TAG2A | 540*165*245 | 20FT |
| YMP-1250 | 1375/1100 | 1250/1000 | 4012-46TWG2A | 560*200*245 | 40HQ |
| YMP-1500 | 1650/1320 | 1500/1200 | 4012-46TAG2A | 560*200*245 | 40HQ |
| YMP-1650 | 1815/1452 | 1650/1320 | 4012-46TAG3A | 560*220*260 | 40HQ |
| YMP-1850 | 2035/1628 | 1850/1480 | 4016-TAG1A | 560*220*260 | 40HQ |
| YMP-2200 | 2420/1936 | 2200/1760 | 4016-61TRG3A | 560*200*260 | 40HQ |
| Prod Model: |
YM9-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Yarmax or OEM |
| Pack: |
Iron Bracket / Veneer Case |
| Original: |
Changzhou Jiangsu Province |
| Color: |
Red/Yellow or Others as Requested |
| Noise Level: |
65dB |
| Fuel Type: |
Diesel |
| Fuel Tank Capacity: |
8 Hours Continue Running |
| Phase No.: |
Three Phases or Single Phase as Requested |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Speed: |
1500rpm/1800rpm |
| Excitation Mode: |
Self Exciter |

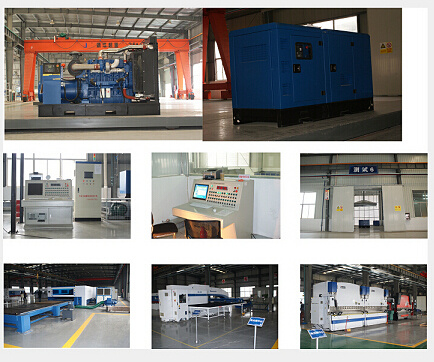

Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
Yarmax Power - your ideal choice
