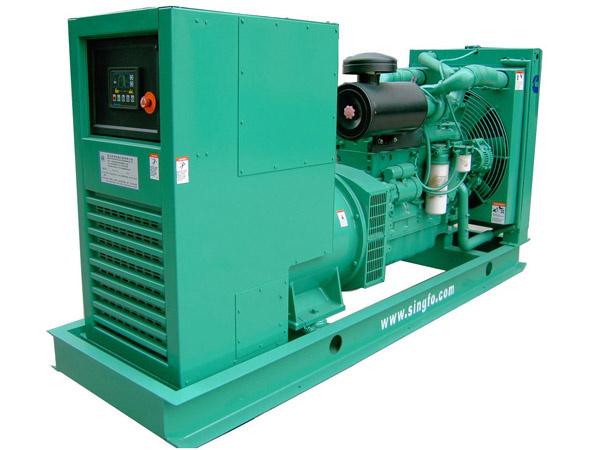

Cummins diesle generator set
Brand of diesle generator set: SFCD160K
Prime power of power generator: 140KW/175KVA
Standby power of diesel genset: 160KW/200KVA
Rated speed of diesel genset: 1500rounds/minute
Genset parameters:
1. Power factor: COSΦ =0.8lagging
2. Noise level: 80-100dB
3. Start-up mode: Electric
4. Fuel consumption: 37.8L/H
5. Rated currency(amps): 266
6. Protections for low oil pressure, high water temperature, over-speed, over-current
7. Package dimension: 2420mm*870mm*1527L*W*H
Diesel generator set parameters:
1. Cummins engine model: 6CTA8.3-G2
2. Power(50Hz): 163KW
3. Rated Voltage: 380/220V
4. Cylinders and layout: 6L
5. Voltage Control: AVR
6. Insulation: H
7. Start-up mode: DC24V electric start
8. Protection: IP21
9. Overload of diesel generator set: 110%
10. Displacement: 8.3L
11. Inter-Cooling: Air inter-cooling
12. Steady Speed Droop ≤ 1%
13. Speed-Governing: Electric
Alternator parameters of diesel genset:
1. Stamford modela: UCI274G
2. Power: 140KW(175KVA)
3. Protection: IP21
4. Rated voltage: 380/220 V
5. Frequency fluctuation: ≤ 0.5 %
6. Frequency regulation: ≤ 0.5 %stable
7. Voltage control: AVR
|
Brand |
Cummins |
|
|
|
Model |
6CTA8.3-G2 |
Power |
160KW/200KVA |
|
Original: |
China |
Start mode |
DC24V electric start |
|
Cylinders |
4 |
Cylinders Layout |
Line |
|
Fuel |
0# light diesel |
Displacement |
3.9 L |
|
Inter-Cooling |
water inter-cooling |
Speed-Governing |
Electric |
|
Overload |
110% |
Steady Speed Droop |
≤1% |
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
