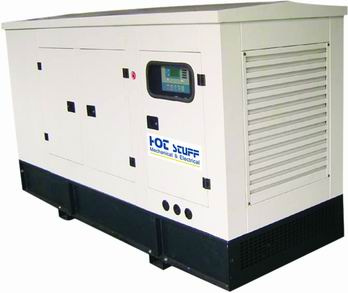

Big power generator brushless silent type. Lovol engine.
Stable performance overload protection
Rated power 16kw-110kw, speed 1500rpm/1800rpm
Frequency: 50Hz/60Hz rated voltage: 230v/400v
Rated current 40a-69.6
Motor: Brushless stamford or leroy summer
Color: Yellow, orange green, white
Output type: AC three phase
|
Generator model |
GF2-20KW |
GF2-24KW |
GF2-30KW |
GF2-40KW |
GF2-50KW |
GF2-64KW |
GF2-80KW |
GF2-100KW |
|
Rated output (Kw) |
20 |
24 |
30 |
40 |
50 |
64 |
80 |
100 |
|
Engine model |
1003G |
1003G |
1003TG |
1003TG |
1004TG |
1004TG |
1006TG2A |
1006TAG |
|
Cylinder no. |
3 |
3 |
3 |
3 |
4 |
4 |
6 |
6 |
|
Induction system |
Naturally aspirated |
Turbocharged |
|
Electric system |
Standard configuration 24V, optional 12V |
|
Bore x Stroke (mm) |
100x127 |
100x127 |
100x127 |
100x127 |
100x127 |
100x127 |
100x127 |
100x127 |
|
Displacement (L) |
3 |
3 |
3 |
3 |
3.99 |
3.99 |
5.99 |
5.99 |
|
Compression ratio |
16.5:1 |
16.5:1 |
17.5:1 |
17.5:1 |
17.5:1 |
17.5:1 |
17.5:1 |
17.5:1 |
|
Lubricating system capacity (L) |
7.48--8.68 |
7.48--8.68 |
7.48--8.68 |
7.48--8.68 |
8.5 |
8.5 |
16.1 |
19 |
|
Firing order |
1,2,3 |
1,2,3 |
1,2,3 |
1,2,3 |
1,3,4,2 |
1,3,4,2 |
1,5,3,6,2,4 |
1,5,3,6,2,4 |
|
Rated output/Max. output (Kw) |
28/30 |
28/30 |
40/44 |
40/44 |
65.7/72.3 |
65.7/72.3 |
92.3/102 |
121/134 |
|
Max. fuel consumption (g/kw.h) |
≤210 |
≤210 |
≤205 |
≤205 |
≤205 |
≤205 |
≤205 |
≤205 |
|
Mechanical governoring |
≤5% |
≤5% |
≤5% |
≤5% |
≤5% |
≤5% |
≤5% |
≤5% |
|
Alternator brushless |
TFW2-20KW |
TFW2-24KW |
TFW2-30KW |
TFW2-40KW |
TFW2-50KW |
TFW2-64KW |
TFW2-80KW |
TFW2-100KW |
|
Voltage, frequency, power factor |
3 phase 4 wire, 380/220V, 50Hz, 1500rpm, COSφ0.8 |
|
Insulation class |
H |
H |
H |
H |
H |
H |
H |
H |
|
Voltage adjusting ratio |
≤±1% |
≤±1% |
≤±1% |
≤±1% |
≤±1% |
≤±1% |
≤±1% |
≤±1% |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
