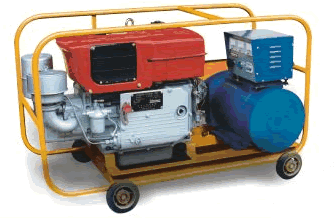

Diesel Generator Set
| Price: |
Negotiable |
| Trade Terms: |
by sea |
| Min Order: |
10 |
| Pay Type: |
L/C,T/T |
Output: From 2kw to 15kw
Voltage: 220v/110v/380v
Frquency: 50hz or 60hz
Engine: Chinese engine
Alternator: Alternator
| Set | Type | GF1-2 | GF1-3 | GF1-5 | GF1-7.5 | GF1-10 | GF1-12 | GF1-15 |
| Rated Output (kw) | 2 | 3 | 5 | 7.5 | 10 | 12 | 15 |
| Rated Voltage (V) | 400/230 |
|
|
| Rated Current (A) | 3.6 | 5.4 | 9 | 13.5 | 18.1 | 21.7 | 27.1 |
| Rated Frequency (Hz) | 50/60 |
|
| Power factor (cosφ) | 0.8 |
|
| Engine | Type | 180 | 185 | 195 | 1110 | 1115 | 1125 | 1130 |
| 12h Power (kw) | 5.15 | 5.88 | 8.82 | 13.24 | 14.7 | 18.8 | 20.22 |
| Speed (r/min) | 2600 | 2200 |
|
| Fuel Consumption(g/kw.h) | 279 | 272 | 258.4 | 238 | 238 | 235.3 | 240.7 |
| Starting Model | |
| Hand Cranking or Electric Starting |
| Generator | Type | STC-2 | STC-3 | STC-5 | STC-7.5 | STC-10 | STC-12 | STC-15 |
| Rated Output (kw) | 2 | 3 | 5 | 7.5 | 10 | 12 | 15 |
| Excitation Model | Triple Harmonic Exciting or with AVR |
|
|
| Insulation Class | B or F |
|
| Package | Outside | L | 950 | 950 | 1350 | 1350 | 1450 | 1450 | 1460 |
| Dimension | W | 470 | 470 | 620 | 620 | 650 | 650 | 710 |
| (mm) | H | 550 | 550 | 760 | 760 | 900 | 900 | 950 |
| Net Weight (kg) | 145 | 150 | 280 | 310 | 330 | 380 | 460 |
It is the production units of its leading products, the professional company on the establishment of a modern enterprise system as the goal of the new enterprise, the company adhere to the principle of supreme quality. Products manufactured by ISO 9001 International Quality Management System Certification as a standard, high-quality brand, adhere to the 'Quality survive, The Variety to development'approach to the first class brand. The companys major product: Ordinary Diesel Generators, Mobile Power Stations, Low-noise Units, Automation units Remote Control System, all kinds of imported units automation and control equipment and products are widely applicable to the mining industry and the postal service. Fire protection departments, mountains, islands, hotels, hospitals, oil field, highways, bridges and other construction, as a living, dynamic power, can also be used as emergency standby power.
'Keep Enterprising, Never Self-satisfaction. ' That is the spirit which encourage us to keep promote our enterprise to the newness state.
