GF3

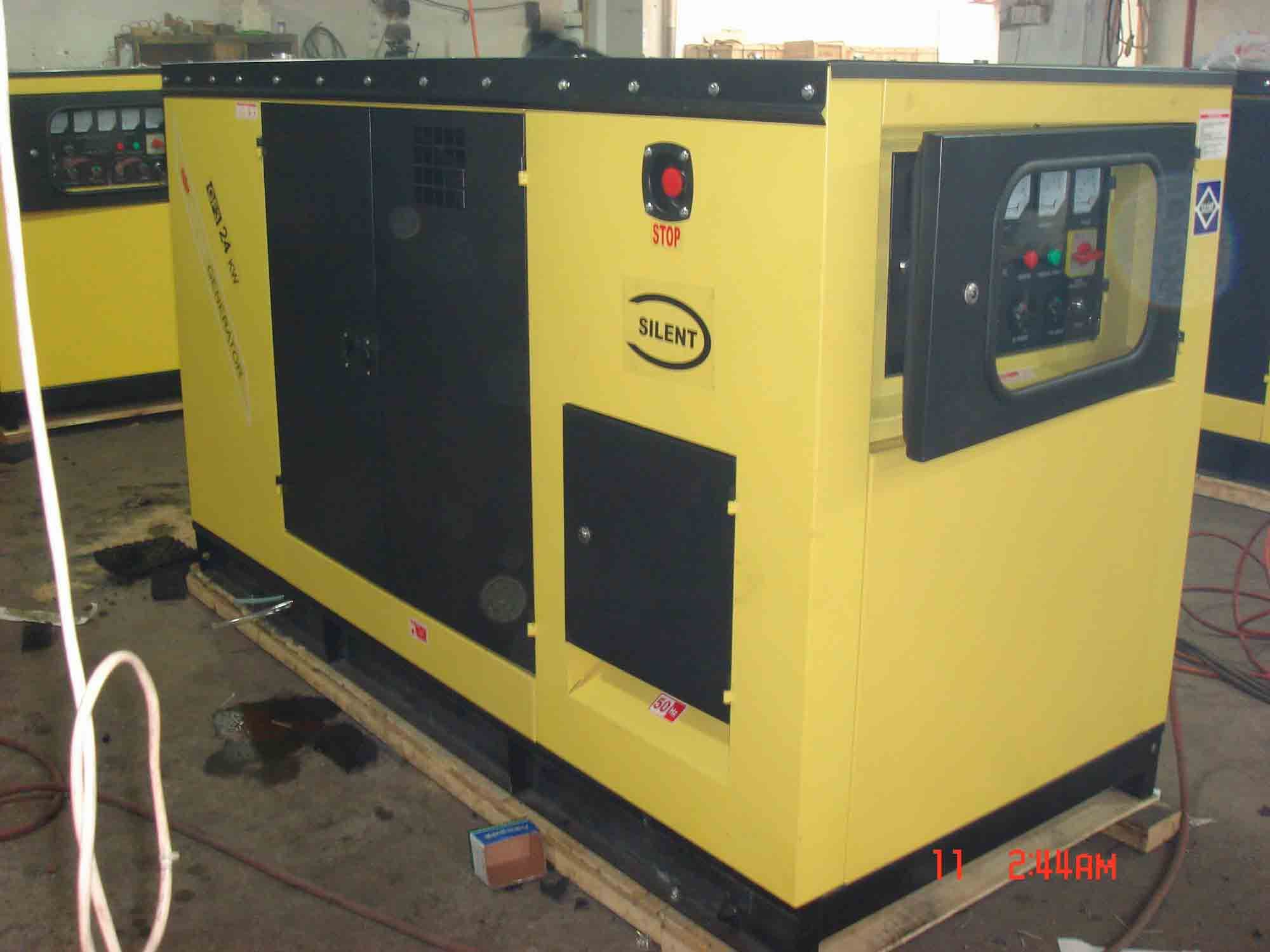

Features: We are a chinese generator manufactory and we supply 20-100KVA diesel power generator sets, especially soundproof silent generator very famouse in Latin America market, the generator engine also made by our factory,
Frequency(Hz): 50hz
Rated output(kW): 30kw
Max. Output (kW): 32kw
Rated voltage (V): 230/400v
Rated current (A): 54.3
DC output: 12V, 30A
Rated speed (r/min): 1500
Excitation model: AVR
Power factor cosφ: 0.8
Phase: Three phase
Pole number: 4
Engine model: Weichai
Engine typel: Water-cooled, 4 stroke, 4 cylinder, diesel engine
Ignition system: Direct injection
Bore*strokemm*mm: 105*110
Displacement L: 3.81
Compression ratio: 19.5
Rated powerkW / (r/min): 36/1500
Fuel consumption g/Kw. H: 254.3
Fuel tank capacity(L): 95
Continuous running time(h): 10
Oil: SAE 15W30 or 15W40
Oil capacity (L): 6.5
Cooling water capacity: (L): 6
Starting system: 12V electric starter
Battery: 12V 120AH
Structure type: Super Silent
Noise lever (dB/7m): 78
Net weight / dry weight(kg): 1024/1220
Net dimension L*W*H(mm): 2000*900*1070
Overall dimension L*W*H(mm): 2030*930*1200
20GP / 40GP / 40HQ: 6/12/24pcs
HQ: 6/12/24pcs
It is the production units of its leading products, the professional company on the establishment of a modern enterprise system as the goal of the new enterprise, the company adhere to the principle of supreme quality. Products manufactured by ISO 9001 International Quality Management System Certification as a standard, high-quality brand, adhere to the 'Quality survive, The Variety to development'approach to the first class brand. The companys major product: Ordinary Diesel Generators, Mobile Power Stations, Low-noise Units, Automation units Remote Control System, all kinds of imported units automation and control equipment and products are widely applicable to the mining industry and the postal service. Fire protection departments, mountains, islands, hotels, hospitals, oil field, highways, bridges and other construction, as a living, dynamic power, can also be used as emergency standby power.
'Keep Enterprising, Never Self-satisfaction. ' That is the spirit which encourage us to keep promote our enterprise to the newness state.
