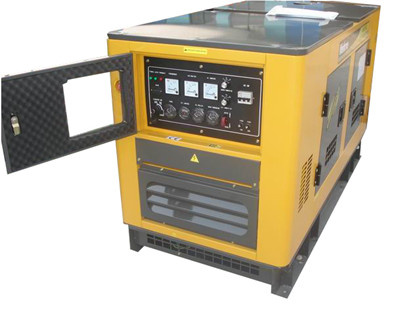

Big generator set--DG50LN
Big generator set, diesel generator set, silent big generating, soundproof big generator set. Diesel engine, diesel water pump, diesel generator and welder set, gasoline engine, gasoline generator set are also our best-selling products.
Introduction
BIG DIESEL GENERATOR: Our big diesel generator sets have nice appearance, competitive price, produce according to the clients' needs. We export to Asia, Europe, Africa, etc, have achieved good performance during the past years, sincerely welcome you to establish long-term cooperation with us, to create a bright tomorrow!
Diesel Generator Set with CE:
1) Output range: From 10kW (12.5kVA) up to 110kW (137.5kVA)
2)Engine model: Weichai, Yangdong, Cummins, new Holland and so on
3)Alternator model: Stamford copy/Marathon/STC/Leroy Sommer and so on
4) Water-cooled
5) Key start / auto start, low noise (72dB)
6)Control system:
A)Automatic protect: Low oil pressure protect/low and high frequency protect/High and low voltage protect/battery voltage low and high protect/over current protect
B)Operation display: Voltage/current/frequency/battery voltage/accumulated time display
7)Supply standard collocation:
A) Diesel engine with all accessories
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) 12 / 24V starting accumulator and battery line
J)Shock absorber
K) High-efficient silencer.
Advantages
1. Big generator set with CE
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
| Model | DG8LN | DG10LN | DG12LN | DG15LN | DG20LN | DG25LN | DG30LN | DG40LN | DG50LN |
| GENERATOR Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated output(kw/kva) | 8/10 | 10/12.5 | 11/13.75 | 15/18.75 | 20/25 | 25/30 | 30/37.5 | 40/50 | 50/62.5 |
| Max output(Kw/kva) | 8.8/11 | 11/13.75 | 12.1/15.12 | 16.5/21 | 22/27.5 | 25/31.25 | 33/41 | 44/55 | 55/68.75 |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 27.5/34.4 | 400/230 | 400/230 | 400/230 |
| Power factor(cos) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated currency(A) |
| 18 | 22 | 27.1 | 36.3 | 43 | 54.1 | 72 | 90 |
| Phase | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Operating noise level(at 7m ) | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 |
| Starting system | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc |
| ENGINE Model | 295D | 295D | 2100D | 495D | 495D | K4100D | K4100ZD | R4105D | R4105ZD |
| Cylinder Number: | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 1.63 |
|
|
|
|
|
|
|
|
| Borexstroke(mm) | 95x115 | 95x115 | 100x115 | 95 x125 | 95 x125 | 100X115 | 95x115 | 105x125 | 105x125 |
| DIMENSION Dimension(LxWxH)(mm) | 1600*850*970 | 1600*850*970 | 1600*850*970 | 1900x850x1100 | 1900x850x1100 | 2000x850x110 | 2000x850x110 | 2400x1050x1400 | 240 0*1050*1450 |
| Dry weight(Kg) | 680 | 698 | 686 | 705 | 920 | 925 | 1040 | 1125 | 1225 |
| Model | DG75LN | DG100LN | DG120LN | DG150LN |
| GENERATOR Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated output(kw/kva) | 75/93.75 | 100/125 | 120/150 | 150/187.5 |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 |
| Power factor(cos) | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated currency(A) | 135 | 180 | 217 | 270 |
| Phase | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Operating noise level(at 7m ) | 75-80 | 75-80 | 75-80 | 75-80 |
| Starting system | Electirc | Electirc | Electirc | Electirc |
| ENGINE Model | R6105ZD | R6105ZLD | R61051ZLD | 6135AZD-1 |
| Cylinder Number: | 6 | 6 | 6 | 6 |
| Displacement |
|
|
|
|
| Borexstroke(mm) | 105x125 | 105x125 | 95x115 | 95 x125 |
| DIMENSION Dimension(LxWxH)(mm) | 2850x1100x1650 | 2950x1150x1650 | 3150x1150x1650 | 2700x900x1780 |
| Dry weight(KG) | 1225 | 1530 | 1570 | 2050 |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
