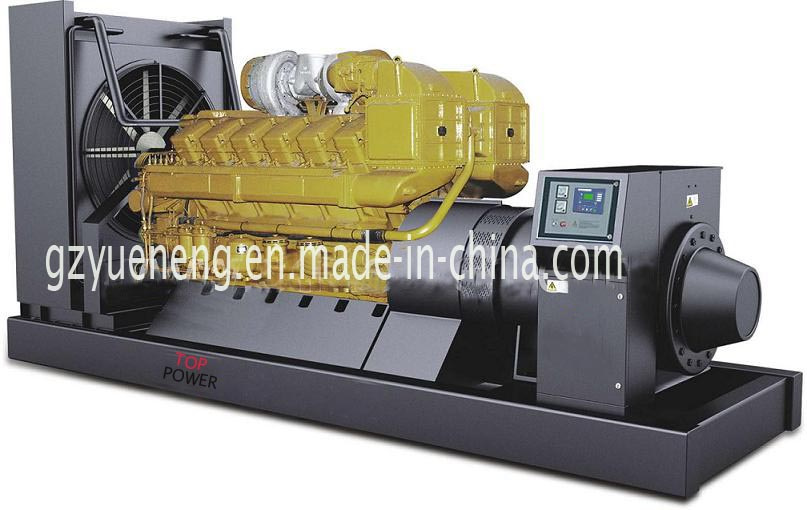

Diesel Generator\Diesel Generator Set
1. Rated Power (KW/KVA): 500/625
2. Standby Power( KW/KVA): 550/687
3. Rated Voltage(V): 400/230
4. Rated Current (A): 900
5. Rate of Voltage transient adjustment: 20-15%
6. Voltage Stabilization time: 1.5 seconds
7. Rate of Voltage Fluctuation: Less than 1%
8. Rate of frequency steady adjustment: 10% more / less
9. Frequency stabilization time: 7 seconds
10. Rate of frequency fluctuations: Less than 0.5%
11. Voltage adjustment range: More than 10%
12. Diesel oil consumption(g/kw. H): Less than 204 (1+5%)
13. Engine oil consumption(g/kw. H): Less than 1.2
14. Automatic star time: 5-60 seconds (adjustable )
15. Pressure of main oil conduit: 0.4-0.8(Mpa) oil temp (more than 60 degree )
16. Overhaul time: More than 18000 hours
17. Noise: Less than 105 dB(A)LP7m
Diesel Engine
1. Brand: YueNeng
2. Type:
Optional 1: C6190ZLD (562 KVA)
Optional 2: C6190ZLD (625 KVA)
Optional 3: Z12V190ZLD (750 KVA)
Optional 4: Z12V190ZLD (825KVA)
Optional 5: Z12V190ZLD (900 KVA)
Otional 6: C12V190ZLD (1000 KVA)
Optional 7: C12V190ZLD-A(1012 KVA)
Optional 8: C12V190ZLD-B (1125 KVA)
3. Bore and Stroke: 190 mm X 210mm
4. Compression Ratio: 14: 1
5. Exhaust Smoke (Bus): Less than 1.5kg
6. Exhaust Temp: Less than 630 degree
7. Vibration Strength: Less than 11.2 mm/s
8. Working mode: 4 Stroke, water cooling, turbocharge,
9. Burn mode: Direct Injection Combustion chamber
10. Mean piston speed: 10.5 m/s
11. Starting mode: 24V DC power
12. Speed adjustment mode: Mechanical adjustment
13. Cooling mode: Closed water tanks with fans
14. Intake cooling water temp: 40-80 º C
15. Out cooling water temp: Less than º C
16. Capactiy of oil temp for load: 160L
17. Filtration system: Whole replacement type filter, air filter is the paper core type
18. Lubrication system: Pressure and splash lubrication
19. Radiator: Double high and low temperature radiator
Generator
1. Brand: ENGGA
2. Voltage wave distortion rate: Less than 3%
3. Protection Grade: IP 21
4. Insulation Grade: H
5. Excitement: Brushless Excited
6. Over loading capacity: 150% in 15 seconds
Controller:
1. Brand: Smartgen
2. Starting mode: Automatic /stop/by hand
3. Automatic start time: 5-60(adjustable)
4. Displayed parameter: VAB, VBC, VCA, IA, IB, IC, Voltage of battery, Cooling water temp, Oil pressure, Generator frequency, Output power, fault information
Insurance and Safety equipment: With the protection of over-voltage, under voltage, over current, super power, low oil pressure, high water temperature, stop, speeding, lack of speed, frequency overrun, fail to star, ect.
Guangzhou Top power equipment Inc. Was established in 2005, with its headquarters in Guangzhou, China, Our factory is located in Panyu industrial Zone, Guangzhou, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals.
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
