Home Generator Products Diesel Generator Set (LG650C)

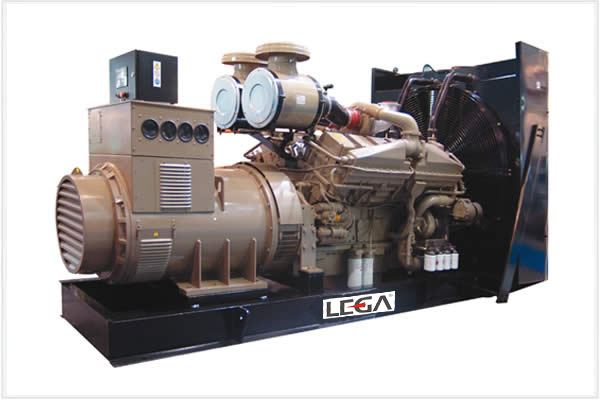

Diesel Generator Set (LG650C)

Diesel Generator Set (LG650C)
Price: Negotiable
Trade Terms: By Sea/By Air
Min Order: 10
Pay Type: L/C,T/T
Engine and alternator shall be mounted on a same frame steel skid.

Built-in damper for anti-vibration.

Small size, low weight, easy to operating, installation and maintenance.

World most famous brand diesel engine. CUMMINS

World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.

Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485

Full range protect function and alarm shutdown feature.
GENTSET MODEL :LG650C
STANDBY POWER(kVA)

650

STANDBY POWER(kW)

520

RATED POWER(kVA)

600

RATED POWER(kW)

480

POWER FACTOR

0.8

OUTPUT VOLTAGE(V)

400/230

MAXIMUM OUTPUT CURRENT(A)

810

GENSET DIMENSION(L×W×H)(mm)

3490×1920×2379

WEIGHT(kg)

4800

ENGINE (cummins)

MODEL

  KTAA19-G6

THE MAXIMUM OUTPUT POWER(kW)

  570

THE NO.OF CYLINDER

   6L

FUEL CONSUMPTION(g/kw.h)

  118

BORE/STROKE(mm)

  159/159

DISPLACEMENT(L)

  18.9

EXHAUST AIR FLOW(m3/min)

   588

COMPRESS AIR FLOW(m3/min)

  43.9

EXHAUST GAS FLOW(m3/min)

  119.5

EXHAUST GAS HIGHEST TEMPERATURE( ºC)

  490

LUB-OIL PAN CAPACITY(L)

  50

ING WATER CAPACITY(L)

  91

VOLE FOR START(V)

  24

INSTRUMENT FOR ADJUSTING SPEED

  ELECTRONICALLY CONTROLLED

NOISEdb(A)

  ≤101





ALTERNATOR (LEROY SOMER)

MODEL

   LSA 47.2L 9

EXCITATION

  BRUSH-LESS

INSULATION CLASS

  H

VOLTAGE ADJUST RANGE

  ≥±6%

FROTECTION CLASS

  IP23

STEADY STATE VOLTAGE REGULATION

  ≤±1%

EFFICIENCY

  92.8%

VOLTAGE CONTROL

   AVR

Prod Model: LG650C
Fujian Everstrong Legapower Equipments Co., Ltd established in 2000, with a total registered capital as USD14.9 Million, is one of the major players of generating set manufacturer in China. The factory of Lega Power, occupying a total space of 200, 000 M2, is located in Hong Kuan Industrial Park, Fuqing City, Fujian Province, China. Two standard workshops of the Phase I Project covering 30, 000 M2, have been put into use since 2007. Now LegaPower supplies generating sets ranging 0.65kVA_2, 200kVA open type, soundproof type, trailer type, containerized type diesel generator sets, ATS Panel and Synchronizing Panel etc. At present, there are 8 Assembly Lines in LegaPower to enable us to produce 300 sets for Industrial Gensets and 25, 000 sets for Portable Generators per month. In partnership with our dealer over 80 countries, we keep moving to expand our business all over the world.

LegaPower, specializes its business in two parts. One part is of industrial generating sets, under company name Fujian Everstrong LegaPower Equipments Co., Ltd(since 2006), supplies diesel generator sets, ATS Panel and Synchronizing Panel etc ranging 10-2200kVA with brand name as LegaPower Generation. The other part is of portable generator sets, under company name Fuzhou Launtop M&E Co., Ltd(since 2000), supplying Diesel and Gasoline engines, Generators Sets and Water pumps ranging 0.65_10kVA with brand name as LAUNTOP. We are proud of being the supplier of the most comprehensive range of power equipments in China.

Our products have a good performance in quality. There are mainly 2 reasons: One is we are the OEM of Cummins, UK, Doosan Daewoo, Deutz, Lovol engines and that of Stamford, Leroy Somer alternators. The other is we pay special attention to our technology innovation and quality control. To ensure the quality of our products, 15 units of CNC machines, pretreatment and powder coating facilities for steel frame and silent canopy have been put into use in our base.

There are about 700 staffs in Lega Power, among whom, there are about 100 professional technicians, still there are many skilled and experienced workers. We treat our staff as our most important resource, and continue to train and improve every staff, that is the reason why most of them have been working with Lega Power since the very beginning of its establishment.

We have our Sales Team of more than 30 international sales persons, who are professional in generator set business and experienced in the exportation. We also have Service Team that is quite responsive to provide Before Service, Service during Sales and After Service.

In recent years, to be compliant with the requirements of the environment protection, we have concentrated upon the technology innovation and attestation work. We are ISO 9001 and ISO 14001 certified and nowadays we have passed the certification of EPA in U. S. A., CSA and CTL in Canada, CE in Europe, also we have obtained TUV and GS certificate in Germany etc.

We warmly welcome your joining with us and hope that will bring mutual benefit to both parties in near future.
