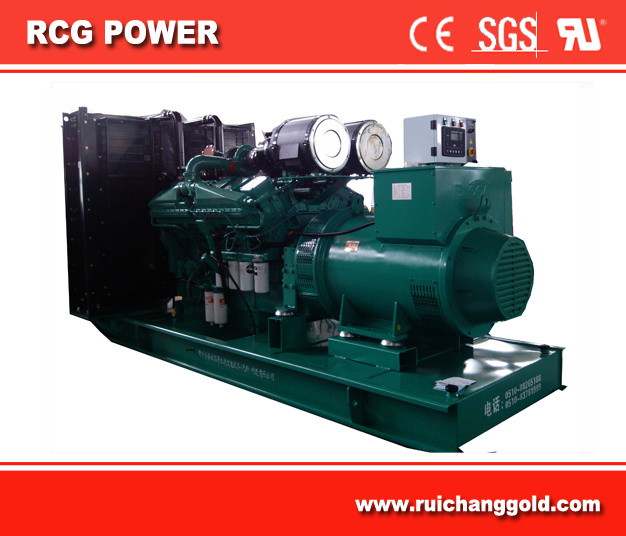

specification for diesel generator set for sale
Fuel Consumption(G/KW. H): <200
Intaking Method: Turbocharged
Governing Method Electronical
Cylinder Numbers: 6 In Line
Cooling Starting Method Water Cooled/Elctric Starting
Rated Voltage(V) 400, 415, 440/200, 208, 220
Frequency(Hz) 50/60
Power Factor(COS? ) 0.8 Lagging
Phase/Connection 3-Phase 4-Wire Y Type Connection
Alternator: Stamford HCI444F
Excitation Brushless Excitation
Voltage Regulation Automatic/A. V. R
Net Weight(Kg): 3000
Packing Size LWH(mm) 3300*1150*1900
Option: Soundproof, AMF, ATS
RUICHANG
Generating Set Model | R-C600GF |
| Prime | Standby |
| Power(kW) | 480 | 528 |
| Capacity(KVA) | 600 | 660 |
| Current(A) | 866 | 953 |
| Rated voltage(V) | 382/220 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase – 4 wires |
| Engine Manufacturer | CUMMINS |
| Model | KTAA19-G6 |
| Power(kW) | 483 | 570 |
| No. of cylinders & configuration | In-Line 6 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electronic governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 18.9 |
| Compression ratio | 13.5:1 |
| Bore×Stroke(mm) | 159×159 |
| 100% Load fuel consumption(L/h) | ≤136.2 |
| In-let gas flow(L/min) | 692 |
| Exhaust gas flow(L/min) | 1855 |
| Exhaust gas temperature | 450 |
| Lube oil capacity(L) | 50 |
| Noise(dB) | ≤105 |
| Alternator Manufacturer | Wuxi Newage Alternators Ltd. (STAMFORD) |
| Alternator model | HCI5E |
| Exciting method | Brushless |
| Voltage regulation | AVR |
| Short circuit protection | MCCB |
| Steady state frequency regulation ratio | ≤5% |
| Range of voltage regulation at no load | ≥95%~105% |
| Steady state voltage regulation ratio | ≤±1% |
| Insulation class | H |
| Enclosure class | IP23 |
| Phone interference | THF≤2% / TIF≤50 |
| Overall dimension (NET)(mm) | 3500×1250×1950 |
| Weight(kg) | 5000 |
