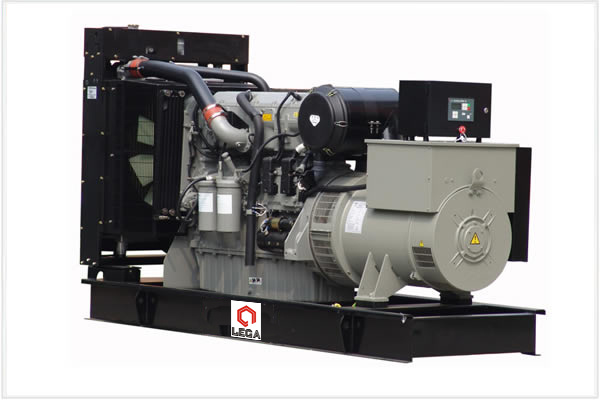

Diesel Generator Set (E-P550)
| Price: |
Negotiable |
| Min Order: |
1 |
1) Pre-eminent quality and price
2) High quality: Low oil consumption, low noise, meets international exhaust standards, reasonable cost
3) Fast delivery
4) Enough supply of goods, flexible delivery, can deliver within several days
5) Small volume
6) Compact structure, excellent design, takes full advantage of resources
7) Prompt service
8) Has 7 market department areas, 300 service stations engaged by special arrangement and 16 warehouses for spare parts
| GENTSET MODEL : E-P550 |
STANDBY POWER(kVA)
| 625
|
STANDBY POWER(kW)
| 500
|
RATED POWER(kVA)
| 550
|
RATED POWER(kW)
| 440
|
POWER FACTOR
| 0.8
|
OUTPUT VOLTAGE(V)
| 400/230
|
MAXIMUM OUTPUT CURRENT(A)
| 792
|
GENSET DIMENSION(L×W×H)(mm)
| 3245×1460×2197
|
WEIGHT(kg)
| 3940
|
ENGINE (perkins)
|
MODEL
| 2806C-E18TAG1
| THE MAXIMUM OUTPUT POWER(kW)
| 558
|
THE NO.OF CYLINDER
| 6L
| FUEL CONSUMPTION(g/kw.h)
| 207
|
BORE/STROKE(mm)
| 145/183
| DISPLACEMENT(L)
| 18.1
|
EXHAUST AIR FLOW(m3/min)
| 574
| COMPRESS AIR FLOW(m3/min)
| 42
|
EXHAUST GAS FLOW(m3/min)
| 90
| EXHAUST GAS HIGHEST TEMPERATURE(ºC)
| 459
|
LUB-OIL PAN CAPACITY(L)
| 68
| ING WATER CAPACITY(L)
| 71.6
|
VOLE FOR START(V)
| 24
| INSTRUMENT FOR ADJUSTING SPEED
| ELECTRONICALLY CONTROLLED
|
NOISEdb(A)
| ≤95
|
|
|
ALTERNATOR (LEROY SOMER)
|
MODEL
| LSA47.2M8
| EXCITATION
| BRUSH-LESS
|
INSULATION CLASS
| H
| VOLTAGE ADJUST RANGE
| ≥±6%
|
FROTECTION CLASS
| IP23
| STEADY STATE VOLTAGE REGULATION
| ≤±1%
|
EFFICIENCY
| 93.9%
| VOLTAGE CONTROL
| AVR
|
Fujian Everstrong Legapower Equipments Co., Ltd established in 2000, with a total registered capital as USD14.9 Million, is one of the major players of generating set manufacturer in China. The factory of Lega Power, occupying a total space of 200, 000 M2, is located in Hong Kuan Industrial Park, Fuqing City, Fujian Province, China. Two standard workshops of the Phase I Project covering 30, 000 M2, have been put into use since 2007. Now LegaPower supplies generating sets ranging 0.65kVA_2, 200kVA open type, soundproof type, trailer type, containerized type diesel generator sets, ATS Panel and Synchronizing Panel etc. At present, there are 8 Assembly Lines in LegaPower to enable us to produce 300 sets for Industrial Gensets and 25, 000 sets for Portable Generators per month. In partnership with our dealer over 80 countries, we keep moving to expand our business all over the world.
LegaPower, specializes its business in two parts. One part is of industrial generating sets, under company name Fujian Everstrong LegaPower Equipments Co., Ltd(since 2006), supplies diesel generator sets, ATS Panel and Synchronizing Panel etc ranging 10-2200kVA with brand name as LegaPower Generation. The other part is of portable generator sets, under company name Fuzhou Launtop M&E Co., Ltd(since 2000), supplying Diesel and Gasoline engines, Generators Sets and Water pumps ranging 0.65_10kVA with brand name as LAUNTOP. We are proud of being the supplier of the most comprehensive range of power equipments in China.
Our products have a good performance in quality. There are mainly 2 reasons: One is we are the OEM of Cummins, UK, Doosan Daewoo, Deutz, Lovol engines and that of Stamford, Leroy Somer alternators. The other is we pay special attention to our technology innovation and quality control. To ensure the quality of our products, 15 units of CNC machines, pretreatment and powder coating facilities for steel frame and silent canopy have been put into use in our base.
There are about 700 staffs in Lega Power, among whom, there are about 100 professional technicians, still there are many skilled and experienced workers. We treat our staff as our most important resource, and continue to train and improve every staff, that is the reason why most of them have been working with Lega Power since the very beginning of its establishment.
We have our Sales Team of more than 30 international sales persons, who are professional in generator set business and experienced in the exportation. We also have Service Team that is quite responsive to provide Before Service, Service during Sales and After Service.
In recent years, to be compliant with the requirements of the environment protection, we have concentrated upon the technology innovation and attestation work. We are ISO 9001 and ISO 14001 certified and nowadays we have passed the certification of EPA in U. S. A., CSA and CTL in Canada, CE in Europe, also we have obtained TUV and GS certificate in Germany etc.
We warmly welcome your joining with us and hope that will bring mutual benefit to both parties in near future.
