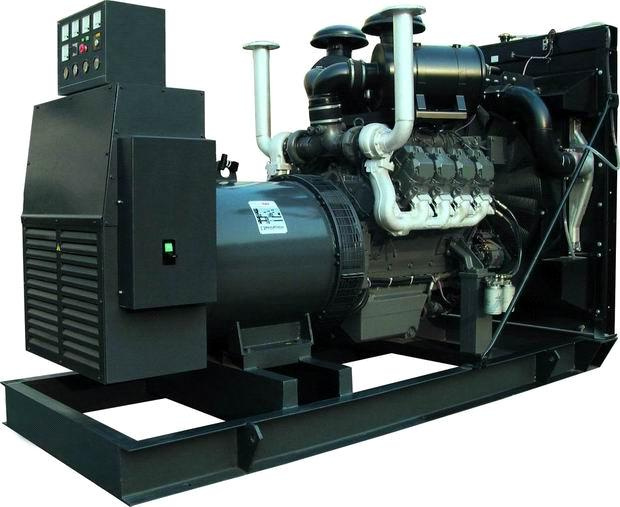

Diesel Generator Set:
1)Generator Model: 42 GF1001
2)Rated Frequency: 50Hz, 60Hz
3)Power Factor: 0.8
4)Rated Voltage: 400v/230v, or according to customer's request
5)Rated Power(KVA/KW): 42KVA/33.6KW
6)Standby Power(KVA/KW): 46.5 KVA/37KW
7)Phase/Wire: 3-phase and 4-wire
Detail Engine:
1)Diesel Engine: TD226B-3D
2)Type: Water-cooled, in-line, 4-stroke, direct injection, wet cylinder liner
3)Intake Type: Turbocharged
4)No. Of cylinder: 3
5)Bore/Stroke(mm): 105/120
6)Start Method: Electric Starting (DC24V)
7)Governing Type: Mechanical/Electronic
8)Mechanical Government Rate: ≤ 5%
9)Mechanical Government Rate: ≤ 1%
10)Cooling Method: Closed Water Cooled
11)Noise at 1m dB(A): 105
12)Rated Fuel Consumption(g/kW. H): 208
13)Displacement(L): 3.12
Alternator:
1)Manufacture: Marathon
2)Exciting Type: Brushless
3)Insulation Class:
Control System:
Control Pannel: Installed on common base by shock absorber
Optional components:
Parallel equipment, common base oil tank, automatic start, ATS (automatic transfer switch), remote control equipment, silencing type, rain-proof sheld, and trail type
Weifang Progress Industrial Co., Ltd., is a comprehensive company which engaged in the energy development, manufacture and management. Our company is the key high-tech interprise of shandong province, is one of the largest generator set manufacturers in China, who has a high performance in the manufacture of generator sets, water pump systems and control panels. We are specialized in developing and researching the diesel generator under the market, and we are always keeping improving the product quanlity according to the competition of the market. While we had already have high reputation all over the world We select international diesel engines such as CUMMINS, PERKINS, DEUTZ, 135, WEICHAI series engines to collocate MARATHON and STAMFORD and other international brand alternators. With reasonable design, advanced craft, low noise, weak librations, quick start up and creditable capability, our products have been widely used in such fields as industry, mine, bank, hospital, ship, post office and telecommunications, oil, high-rise and field construction. We have theISO9001: 2000. CE and other international certificates.
