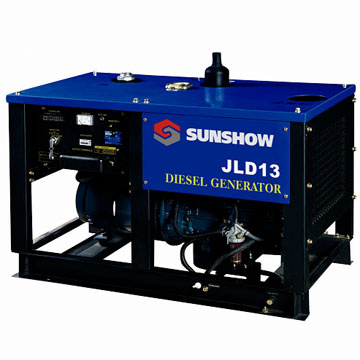

Diesel Generator (JLD13S)

Diesel Generator (JLD13S)
Price: Negotiable
Min Order: 1
Detailed Product Description
Specification:
Dynamo:
1) Model: JLD13 (open-frame)
2) Frequency: 50/60Hz
3) Rated output: 10.5kVA, 13kVA, 8.4kW, 10.4kW
4) Voltage: 200/380/400V, 220/440V
5) No. Of phase: Three-phase, four-wire system
6) Power factor: 80%
7) Excitation system: Brushless, rotating excitation (AVR)

Engine:
1) Model: 385B
2) Type: 3 inline cylinders, direct injection
3) Bore x stroke: 80 x 90mm (3.15 x 3.54")
4) Displacement: 1.356L
5) Compression ratio: 1.81
6) Rated output: 10kW (13.60PS), 12.4kW (16.87PS)
7) Rated revolution: 1, 500r/min, 1, 800r/min
8) Fuel: Light diesel fuel
9) Tank capacity: 20L (5.28 gal)
10) Oil capacity: 3.5L (0.92 gal)
11) Cooling water capacity: 7L (1.85 gal)
12) Battery: 12V 80Ah x 1

Measurement and weight:
1) Length: 1, 210mm (46.64")
2) Width: 660mm (25.98")
3) Height: 1000mm (39.37")
4) Dry weight: 320kg (705lbs)
5) Noise: DB(A)/7m (23f. )76, 80

Features and advantages:
1) Our generators are armed with a direct injection type of combustion chamber of the engine; They have high burning efficiency and lower noise
2) The unique double induction system allows a more thorough economical combustion for the engine with even lower exhaust
3) The triple channel air inlet system effectively reduces the wind turbulence inside the cabinet, reduces noise, and enables a more smooth air-in and air-out
4) We achieve lower noise by having a considerably enlarged space inside the cabinet, and an employment of highly effective damping materials using advanced techniques
5) Safety features include multi-tier levels of protection against low oil pressure and high water temperature
6) Our high performance diesel engines can generate power at a lower speed. This results in stable power generation, lower noise, and more up time
7) The standard pre-warming system makes our engines start easier on even the coldest days
8) Our own specially designed brushless dynamos are fitted with AVR. This know-how feature allows us to guarantee a balanced power supply

Packing: Wooden case
Prod Model: JLD13
For nearly 20 years, Zhejiang Jinling Machinery Co., Ltd. has kept sustained effort focusing on the realm of portable generators, engines, pumps and motorcycle parts.

Greeted with a reputation for widely recognized quality, our gasoline and newly developed diesel generator sets are branded with two well-known labels of "JINLING" and "SUNSHOW". These products, covering an array of well-segmented power outputs from 0. 65kVA escalating to 23kVA, have been certified with EPA, CE/GS, VCA, Nigerian SONCAP PC and ISO9001.

Long-term payoff will be seen for sure as we are prepared to address the fast-growing demand issues, by moving our outfits as a major step to a brand new plant covering an area of 55, 000 square meters in Shanghai, a metropolis conveniently supported by its neighboring province, Zhejiang.

The strategic move will be actualized very soon, which is bound to gain momentum for us to achieve a tremendous capacity. In addition, we headquarter ourselves in Shanghai, an information-fluent area, in an attempt to enable us catering way faster to customer needs, and allow for customer-care meetings, while still retaining a parts supplier network within a stone's throw.

Be sure we will hold ourselves down-to-earth, in providing all customers with timely response, exquisite workmanship and sound services.
