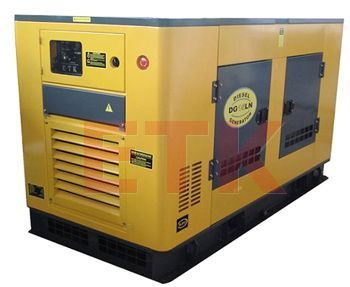

Model DG15LN
Alternator Model(Stamford) 18
Rated Power(kw) 15
Rated Current(A) 27.1
Rated Voltage(V) 400/230
Rated Frequency(Hz) 50/60
Engine Speed 1500/1800
Power Factor(cosØ ) 0.8(lag)
Excitation Model Brushless self excitation with constant voltage AVR
Phase number three -phase type connection
Engine Model YD485
Type Water cooling, in line, 4-cycle, 4-cylinder, direct injection, diesel engine
Cylinder numbers 4
Broe× Stroke(mm) 85*125
Rated Output(Kw) 16.5
Displacement(L) 6.49
SPE Fuel consumption(g/kW. H) ≤ 235
Fuel Type 0#(summer), -10#(winter), -35#(chill cold) diesel
Lube oil brand 15W30 or 15W40
Starter System Electric start with battery 12V
Noise level dB(A)/7m 69/70
Dimension(L× W× H)(cm) 166*82*99
Net weight(kg) 1180
Structure type super-silent
| Model | DG8LN | DG10LN | DG12LN | DG15LN | DG20LN | DG25LN | DG30LN | DG40LN | DG50LN |
| GENERATOR Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated output(kw/kva) | 8/10 | 10/12.5 | 11/13.75 | 15/18.75 | 20/25 | 25/30 | 30/37.5 | 40/50 | 50/62.5 |
| Max output(Kw/kva) | 8.8/11 | 11/13.75 | 12.1/15.12 | 16.5/21 | 22/27.5 | 25/31.25 | 33/41 | 44/55 | 55/68.75 |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 27.5/34.4 | 400/230 | 400/230 | 400/230 |
| Power factor(cos) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated currency(A) |
| 18 | 22 | 27.1 | 36.3 | 43 | 54.1 | 72 | 90 |
| Phase | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Operating noise level(at 7m ) | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 |
| Starting system | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc |
| ENGINE Model | 295D | 295D | 2100D | 495D | 495D | K4100D | K4100ZD | R4105D | R4105ZD |
| Cylinder Number: | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 1.63 |
|
|
|
|
|
|
|
|
| Borexstroke(mm) | 95x115 | 95x115 | 100x115 | 95 x125 | 95 x125 | 100X115 | 95x115 | 105x125 | 105x125 |
| DIMENSION Dimension(LxWxH)(mm) | 1600*850*970 | 1600*850*970 | 1600*850*970 | 1900x850x1100 | 1900x850x1100 | 2000x850x110 | 2000x850x110 | 2400x1050x1400 | 240 0*1050*1450 |
| Dry weight(Kg) | 680 | 698 | 686 | 705 | 920 | 925 | 1040 | 1125 | 1225 |
| Model | DG75LN | DG100LN | DG120LN | DG150LN |
| GENERATOR Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated output(kw/kva) | 75/93.75 | 100/125 | 120/150 | 150/187.5 |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 |
| Power factor(cos) | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated currency(A) | 135 | 180 | 217 | 270 |
| Phase | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Operating noise level(at 7m ) | 75-80 | 75-80 | 75-80 | 75-80 |
| Starting system | Electirc | Electirc | Electirc | Electirc |
| ENGINE Model | R6105ZD | R6105ZLD | R61051ZLD | 6135AZD-1 |
| Cylinder Number: | 6 | 6 | 6 | 6 |
| Displacement |
|
|
|
|
| Borexstroke(mm) | 105x125 | 105x125 | 95x115 | 95 x125 |
| DIMENSION Dimension(LxWxH)(mm) | 2850x1100x1650 | 2950x1150x1650 | 3150x1150x1650 | 2700x900x1780 |
| Dry weight(KG) | 1225 | 1530 | 1570 | 2050
|
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
