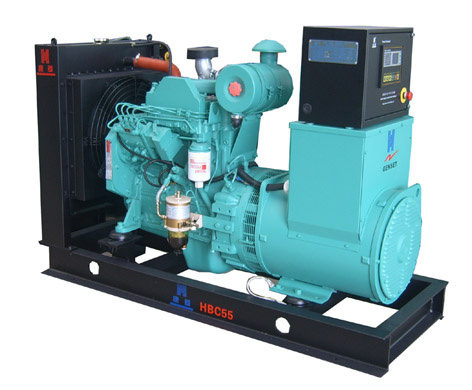

6BT series diesel generator, Power range is from 62.5kVA to 142.5kVA
Model & Specification: (50Hz, 1500RPM, 400/230V Adjustable, 0.8 Lagging power factor)
GENSET MODEL PRIME POWER STANDBY POWER ENGINE MODEL DIMENSION (LXWXH) mm WEIGHT (kg)
kVA KW kVA KW
HBC66 75 60 82.5 66 6BT5.9-G2 2150X830X1200 1250
HBC77 87.5 70 96.25 77 6BT5.9-G2 2150X830X1200 1300
HBC82 93.75 75 102.5 82 6BT5.9-G2 2150X830X1200 1350
HBC88 100 80 110 88 6BT5.9-G2 2150X830X1200 1400
HBC100 112.5 90 125 100 6BTA5.9-G 2400X950X1300 1550
HBC114 130 104 142.5 114 6BTAA5.9-G2 2400X950X1300 1700
Features:
1) Engine and alternator shall be mounted on a same frame steel skid
2) Built-in damper for anti-vibration
3) Small size, low weight, easy to operate, installation and maintenance
4) World most famous brand diesel engine: Perkins 1000 series engine-1004G, 1004TG, 1006TG1A, 1006TG2A, 1006TAG
5) World famous brand AC alternator: Stamford, Marathon, Leroy Somer
6) Advanced and reliable control module: Key start, auto start, remote control by PC with RS232 / 485
7) Full range protects function and alarm shutdown feature
8) According to professional standards
Alternator features:
1) Brush-less, 4 poles, rotation magnet
2) IP21-23 (NEMA1) enclosure is standard for all industrial alternators
3) The insulation system is class H
4) Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts
5) Wide range of flange adaptors and single bearing disc coupling
6) Standard 2/3 pitch windings avoid excessive neutral currents
Accessories:
1) Standard accessories: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control system with RS232/485, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Honny Genset Equipment Engineering Co., Ltd. Was founded in year 1992, and has been one of the largest generator manufacturers in China. We specialize in the assembly, design, sales, installation, maintenance, and service of Cummins, Perkins, Deutz, Volvo Penta, Daewoo series generator sets with power ranging from 10-2500kVA. We believe that it is our assurance of quality and exceptional communication skills as well as our competitive prices and professional service, that will always mean your best choice.
With the great efforts and developments of over 15 years, Honny now employs over 1000 employees, including 100 in management positions, 120 technical personnel, over 200 engineers, 200 maintenance and service personnel, and over 300 salesmen. Honny now operates over 32 branches and offices, throughout the largest cities in China. Our assembly capacity is over 10, 000 sets per year.
At present, Honny has established a strategic cooperation with many world famous companies and has established OEM partnerships with Cummins, Perkins, Daewoo, Deutz, and Volvo Penta diesel engines as well as Marathon, Leroy Somer, Stamford, and MVC alternators. In past year 2005 and 2006, Honny was the No. 1 and largest OEM manufacturer for Cummins Diesel Engine and Marathon Alternator in China.
HONNY runs in accordance with the ISO9001: 2000 quality system, and design, assembly, sales and after-sales service for 10-4000KW generator sets, ATS, paralleling systems and low voltage switchgear systems. Our products are widely used in building, plant workshops, the hospital industry, oil fields, roads and railway systems, marine, military equipment, mining etc.
Quality, Price and Service are regarded as the number one priority for all Honny's staff, and we dedicate ourselves to this promise. Honny gained the ISO9001: 2000 quality certificate at the end of 2004, and also gained the Telecom Entrance License Certificate of PRC Information Industry Ministry in May of 2005. In July 2005, Honny's products were tested and checked by the National Generator Sets Inspection Center and gained the quality assurance certificates for all products. At the same time, Honny series products were also tested by the China Middle-Light Product Quality Assurance Center and gained the Quality Certificate for all products in our ever-expanding series.
