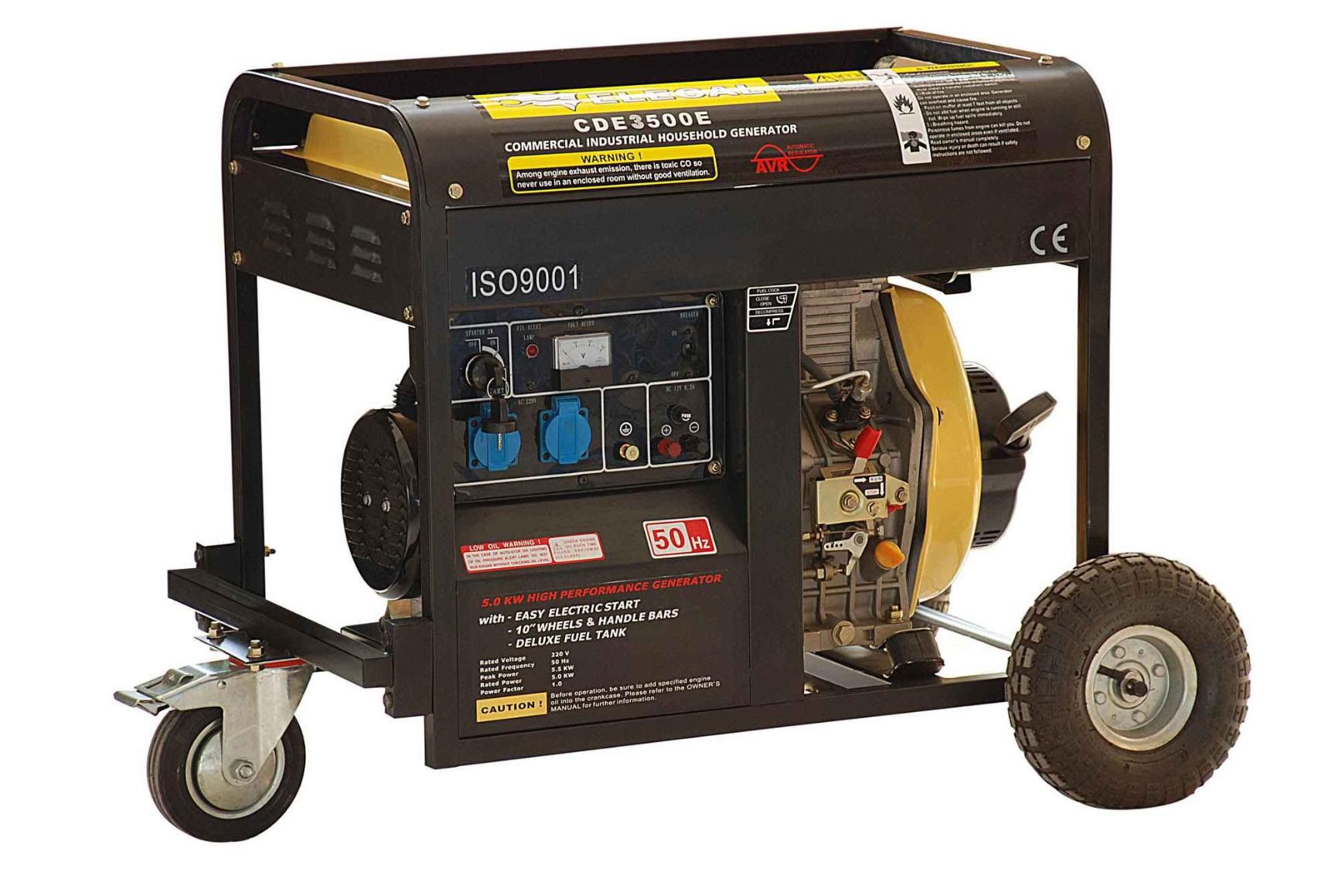

DIESEL GENERATOR SET
Features and benefits:
*A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
*Optional electric starter.
*Low oil pressure alert system shuts down the engine automatically.
| Model | CDE2500(E) | CDE3500(E) | CDE7500(E) | CDE7500(E3) |
| Rated frequency (Hz) | 50 60 | 50 60 | 50 60 | 50 60 |
| Rated output(kVA) | 2.0 2.3 | 3.0 3.3 | 5.0 5.2 | 5.5 6.3 |
| Max. ouput (kVA) | 2.2 2.5 | 3.3 3.5 | 5.2 5.5 | 6.0 7.0 |
| Rated voltage (V) | 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240 | 220/380,230/400,240/416 |
| Rated current (A) | 15.4/7.7, 14.8/7.4, 14.2/7.1, 18.2/9.1, 17.4/8.7, 16.6/8.3 | 25.4/12.7, 24.3/12.2, 23.3/11.6 27.2/13.6, 26.0/13.0, 25.0/12.5 | 40.9/20.4, 39.1/19.5, 37.5/18.7 45.4/22.7, 43.4/21.7, 41.6/20.8 | 6.8, 6.5, 6.2, 7.5, 7.2, 6.9 |
| Rated speed (r/min ) | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 |
| Phase NO. | Single phase | Single phase | Single phase | Three phase |
| Power factor (cos φ ) | 1 | 1 | 1 | 0.8(lag) |
| Insulation grade | B | B | B | B |
| Pole number | 2 | 2 | 2 | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) | Self-Excitation and constant voltage(AVR) | Self-Excitation and constant voltage(AVR) | Self-Excitation and constant voltage(AVR) |
| panel type | General Panel | General Panel | General Panel | General Panel |
| DC12V output | Connection pole output | Connection pole output | Connection pole output | Connection pole output |
| Overall dimension:L×W×H(mm) | 660*480*550 | 705*480*562 | 715*495*620 | 715*495*620 |
| Net Weight(kg) | X:53 E:60 | X:65 E:70 | X:95 E:100 | X:95 E:100 |
| Gross Weight(kg) | X:66 E:73 | X:78 E:83 | X:110 E:115 | X:110 E:115 |
| Engine model | CH170FG | CH178FG | CH186FAG | CH186FAG |
| Engine type | Air cooled single-cylinder,Vertical,four-storke,direct injection | Air cooled single-cylinder,Vertical,four-storke,direct injection | Air cooled single-cylinder,Vertical,four-storke,direct injection | Air cooled single-cylinder,Vertical,four-storke,direct injection |
| Cylinder NO,-bore×stroke(mm) | 1-70×55 | 1-78×62 | 1-86×72 | 1-86×72 |
| Displacement | 211 | 296 | 418 | 418 |
| Rated power[kW(Hp)/(r/min)] | 2.5/3000 2.8/3600 | 3.68/3000 4.0/3600 | 6 /3000 6.6/3600 | 6 /3000 6.6/3600 |
| Compression ratio | 20.:1 | 20.:1 | 19.1:1 | 19.1:1 |
| Lubrication system | pressure splashed | pressure splashed | pressure splashed | pressure splashed |
| Starting system | X:Recoil E:Electric Starter | X:Recoil starter E:Electric Starter | X:Recoil starter E:Electric Starter | X:Recoil starter E:Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness) disel | 0#(summer)-10#(winter)-20#(chillness)disel | 0#(summer)-10#(winter)-20#(chillness)disel | 0#(summer)-10#(winter)-20#(chillness)disel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 | CDgrade or SAE10W-30,15W-40 | CDgrade or SAE10W-30,15W-40 | CDgrade or SAE10W-30,15W-40 |
| Lube capacity (L) | 0.75 | 1.1 | 1.65 | 1.65 |
| Starting motor capacity (V-kW) | 12V 0.8KW | 12V 0.8KW | 12V 0.8KW | 12V 0.8kW |
| Charging generator capacity (V-A) | 12V 3A | 12V 3A | 12V 3A | 12V 3A |
| Battery capacity(V-Ah) | 12V 24-36AH | 12V 24-36AH | 12V 36AH | 12V 36AH |
| Fuel consumption (g/kW·h) | 286.2 290.3 | 281.1 285.6 | 275.1 281.5 | 275.1 281.5 |
| Fuel tank capacity (L) | 12 | 12 | 12 | 12 |
| Continuous running time (hr) | 16 | 11 | 7 | 7 |
