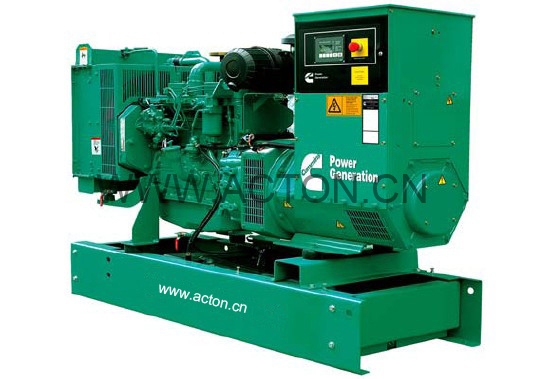

Power Generator Set (C70D5)
Generator,Generator Set, Diesel Generator, Power Generator, Power Generator Set, Silent Generator
Standard generator features
Cummins water cooled Diesel engine
Oil and fuel filter fitted, water separator,
Lube-oil drain valve fitted
Electric starter & Charge alternator 12 v D. C.
Mechanical governor
Normal duty air filter
Single bearing alternator, class H/H, IP23
Standard voltage 400/230 volts 50 Hz
Exciter/Voltage reg - Torque Match as std
PCC0300 with emergency stop button
4 pole MCB
Welded steel base frame with A/V mounting
Fork lift pockets in baseframe
Single skin metal fuel tank
Tank capacity of min 20 hours operation at 70% standby load
Loose 9 dB(A) silencer
Set mounted starting battery
Engine & Alternator Munsell Jade Green
Radiator and Guarding black
Packing under shrunk plastic film
Operation & Maintenance manual
Standard set of labels
| Model | C70D5 | Speed | 1500 rpm |
| Set output | 380-440 V 50 Hz | Alternator voltage regulation | ±1.0% |
| Prime Rating | 50kWe 63kVA | Alternator insulation class | H |
| Standby Rating | 56 kWe 70 kVA | Fuel consumption (Prime) | 15 l/hr |
| Engine Make | Cummins | Fuel consumption (Standby) | 16 l/hr |
| Engine Model | 4BT3.9-G4 | Lubrication system oil capacity | 10.9 Litres |
| Cylinders | Four | Base fuel tank capacity – open set | 160 Litres |
| Engine build | In-line | Coolant capacity | 21.2 Litres |
| Standard Governor/Class | Mechanical | Exhaust temp – prime | 523°C |
| Aspiration and cooling | Turbocharged | Exhaust gas flow – prime | 170 l/s |
| Bore and stroke | 102mmx120mm | Exhaust gas back pressure max | 76 mm Hg |
| Compression Ratio | 16.5:1 | Air flow – radiator* | 2.0 m3/s |
| Cubic capacity | 3.92 Litres | Air intake – engine (Prime) | 66 Litre/s |
| Starting/Min °C | 10°C | Minimum air opening to room | 0.7 sq m |
| Battery capacity | 50 A/hr | Minimum discharge opening | 0.35 sq m |
| Gross Engine output-prime | 58kWm | Pusher fan head (duct allowance)* | 10 mm Wg* |
| Gross Engine output-standby | 64kWm | Heat radiated by eng (Prime) | 17.1 kWm |
