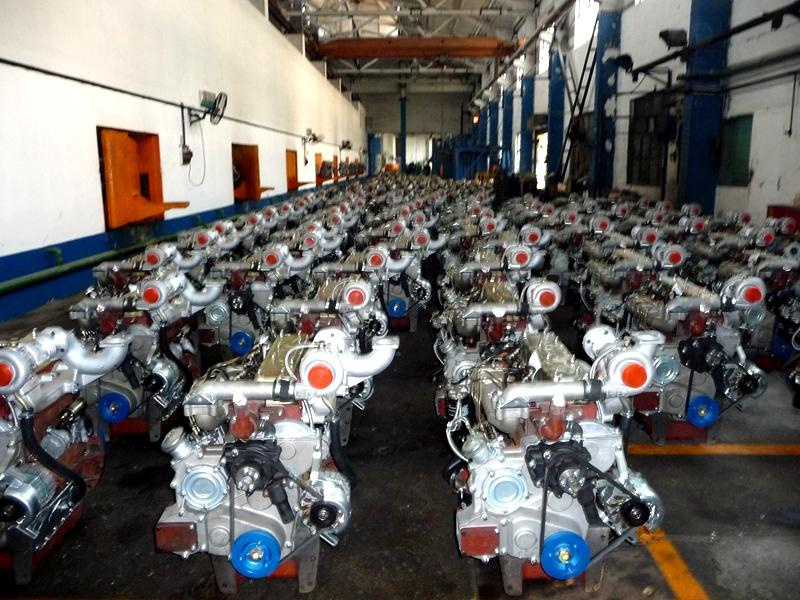

Diesel Generator
The power range of D series diesel engine matched with generator set is from 20.6-44KW. In order to meet the needs for two different frequencies 50Hz and 60Hz of generator set, the rated speed can be either at 1500r/min or and 1800r/min. 495BD generator set is a modified version of Model 495B Diesel engine which has been awarded continuously the National Golden Medal prize thrice.
There are two kinds of air feeding of diesel engine, natural aspirated and turbocharger type, and the connecting dimensions of output end are in compliance with IMB34 international standard or SAE standard. This engine can be equipped additionally with temperature pressure, speed sensors and special design can be performed according to the customer's requirement.
Specification
Model | BR395BD | BR495BD | BR495BZD | BR4100BD | BR4102ZD |
Number of cylinders | 3 | 4 | 4 |
Cylinder bore (mm) | 95 | 95 | 95 | 100 | 102 |
Piston stroke (mm) | 115 |
Total displacement(L) | 2.45 | 3.26 | 3.26 | 3.61 | 3.76 |
Compression ratio | 16.5:1 | 16.5:1 | 17.5:1 | 17.5:1 |
Firing order | 1-3-2 | 1-3-4-2 |
Rated speed(r/min) | 1500(1800) | 1500 | 1500(1800) | 1500 |
Rated power(KW) | 20.6(24.8) | 28.0(33.0) | 34.3 | 31.6(37.9) | 44 |
One hour power(KW) | 23.5(27.3) | 30.8(36.3) | 37.7 | 34.8(38.5) | 47 |
Specific fuel consumption(g/KW.H) | ≤251.6 | ≤242 |
Steady speed regulation | ≤5% |
Instantaneous speed regulation | ≤10% | ≤7% |
Time required to steady speed(s) | ≤5% |
Fluctuation rate of speed | ±0.5% |
Net weight(Kg) | 300 | 330 | 370 | 340 | 360 |
Model | General |
395BD | 495bd | 4100BD | 495BZD |
A | φ350 | φ400 |
B | φ265 | φ300 | φ350 |
C | φ230 | φ250 | φ300 |
D | 4-φ13 | 4-φ17+0.12 +0.06 | 4-φ17+0.12 + 0.06 |
E | 216 | 214 | 247 |
F | 113 |
G | 90 |
H | 8.5 | 6.5 |
I | 241 | 272 |
J | 219 | 251.5 |
K | 147 | 267 |
L | 148.5 | 492.5 |
M | 45 | 71 |
|
|
|
Model | SAE flywheel house |
395BD | 495BD | 4100BD |
A | φ450 |
B | φ428.6 |
C | φ409.58 |
D | 12-φ3/8*(16 Teeth/inch)+0.09 +0 |
E | 117.6 | 159.55 |
F | ---- |
G | 90 | 118 |
H | 9.5 | 6.5 |
I | 241 | 272 |
J | 219 | 251.5 |
K | 147 | 267 |
L | 418.5 | 492.5 |
M | 45 | 71 |
