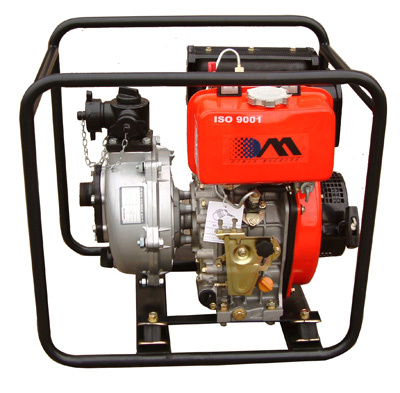

DMP H Series Generator and High Pressure Water Pump Sets(1.5" 2")
High lift capacity, fuel efficient, aluminum aloy, large fuel tank, long hours of continous running, recoil/ electric starter.
Model
DMP-15H(E)
Type: Diesel high pressure water pump
Suction, discharge port diameter [mm(in)]: 40(1.5")
Max. Capacity (m3/h): 10
Max. Head (m): 60
Self-priming time (s/4m): 40
Max. Suction head [m(ft)]: 8.0(26.16)
Rotation speed (rpm): 3600
Starter system: Recoil starter (electric starter )
Overall dimension (L*W*H)(mm): 550*455*550
Packing dimension (L*W*H)(mm): 565*470*570
Net weight (kg): 50(54)
Gross weight (kg): 54(59)
Engine: DM178F
Rated power [KW(PS)]: 4.0(5.5)
Rated rotation speed (rpm): 3600
Displacement [cc(cu-in)]: 296(18.06)
Model
DMP-20H(E)
Type: Diesel high pressure water pump
Suction, discharge port diameter [mm(in)]: 50(2")
Max. Capacity (m3/h): 22
Max. Head (m): 60
Self-priming time (s/4m): 40
Max. Suction head [m(ft)]: 8.0(26.16)
Rotation speed (rpm): 3600
Starter system: Recoil starter (electric starter )
Overall dimension (L*W*H)(mm): 650*480*600
Packing dimension (L*W*H)(mm): 665*495*620
Net weight (kg): 62(68)
Gross weight (kg): 67(74)
Engine: DM178F
Rated power [KW(PS)]: 6.3(8.6)
Rated rotation speed (rpm): 3600
Displacement [cc(cu-in)]: 406(24.76)
We are a Chinese manufacturer specialized in manufacturing and exporting diesel/gasoline engines, portable generators, gensets, generator and water pump sets, generator & welding sets, lawn mower, garden machinery etc...We have CE&EPA certification and manufacture under ISO 9001 management system. Our products are appearance patented which makes them unique from others. In addition, our engineers develop new style products every year. With reliable quality, competitive price and responsive after service, our products sell well in UK, Greece, Sweden, Middle East, Australia, North America, South America and other countries worldwide and enjoy high reputation and long term relationship with our customers. Besides our brand Dimin, OEM is accepted.
