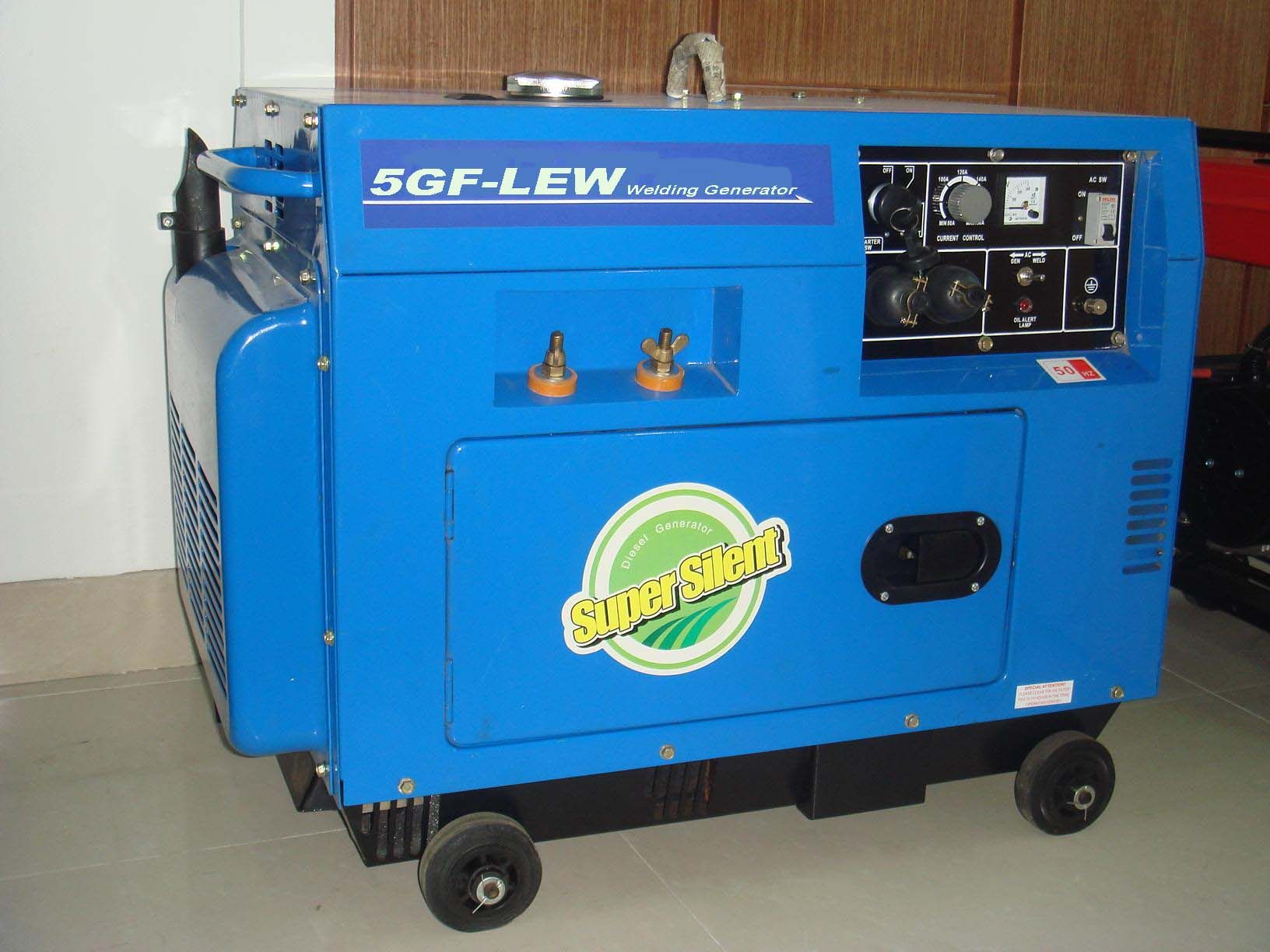

Model silent type
5/6gf-lde
Generator type: Revolving field type 2 pole generator
Frequency(hz): 50 60
Contoutput(kw): 4. 2 /5
Voltage(a. C)(v): 230 /240(120)
Current(a. C)(v): 18. 3 /20. 8(41. 7)
Engine speed(r/min): 3000 /3600
Phase: Single phase
Power factor: 1
Excitation system: Controlled constant self-excitation
D. C output v/a: 12v/8. 3a
Operation capacity: 12 hour constant operation
Coupling pattem: Straight shaft coupling
Engine model: 186fge
Type: Direct injection vertical, 4-cycle, air-cooled diesel engine
Displacement cc(cu. In. ): 406(24. 78)
Max. Output(kw/rpm): 6. 6 /7. 35
Cont. Output(kw/rpm): 5. 9 6. 6
Starting system: Recoil
Govemor system: Centrfugal weight system
Fuel diesel: Light fuel(bs-al or equivalent)
Fuel tank capacity(l): 16
Lube oil capacity(l): 1. 65
Bore x stroke(mm): 86x70
Protection system: Low oil, waming system/stop device(not for l-series)
Unit noise level: At 7m db(a) 70
Dimensions(lxwxh)mm: 905x520x680
Dry weight(kg): 165
