Diesel Generator Model: 2GF-M(E) 3GF-M(E) 5GF-M(E)
Phase: Single
Rated AC Voltage (V): 230 / 115
Rated Frequency (Hz): 50
Rated Output (Kw): 1.7 2.8 4.2
Rated DC Output (V/A): 12 / 8.3
Rated Rotation Speed (rpm): 3000
Power Factor: 1.0
Excitation System: Controllable self-excitation and Constant Voltage
Engine type: YM170F(E) YM178F(E) YM186F(E)
Noise Level at 7m db(A): 75 78 79
Dimensions (mm): 640 x 480 x 530 640 x 480 x 550 720 x 480 x 650
Weight (Kg): 53 65 92

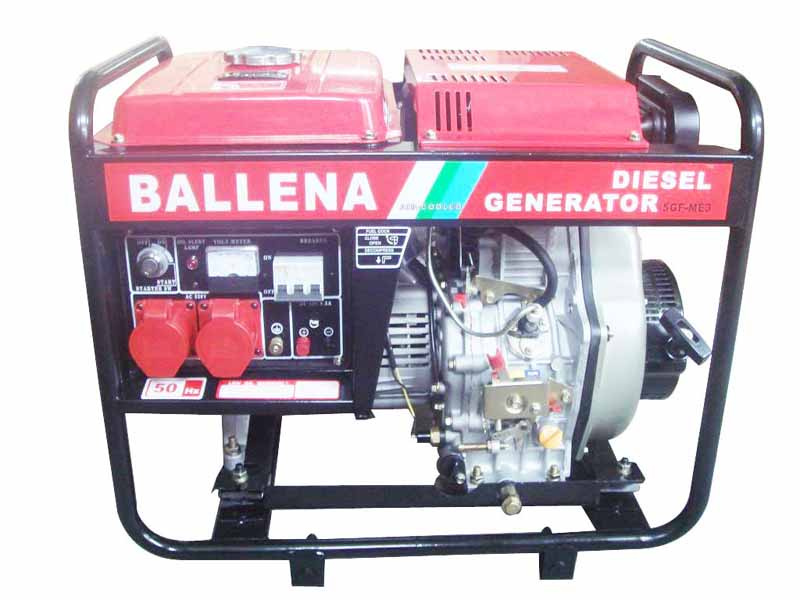

Model 5GF-ME3: Three phase, rated power 5KW.
| Model | 2GF-M(E) | 3GF-M(E) | 5GF-M(E) | 5GF-M(E)3 |
| Phase | Single | Three |
| Voltage /Frequency | 230V/ 50Hz | 230V/ 50Hz | 230V/ 50Hz | 380V/ 50Hz |
| Rated output | 1.7Kw | 2.8Kw | 4.2Kw | 5Kw |
| DC output | 12V / 8.3A |
| Rotation speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
| Power factor | 1.0 | 1.0 | 1.0 | 1.0 |
| Net weight | 50Kg | 65Kg | 92Kg |
| Dimension | 640 x 480 x 530mm | 640 x 480 x 550mm | 720 x 480 x 650mm |
| Engine model | YM170F(E) | YM178F(E) | YM186F(E) |
| Starting system | Recoil starter or Electric starter |
| Fuel tank capacity | 13.5L | 13.5L | 13.5L | 13.5L |
| Fuel type | Diesel 0# (summer), diesel -10# (winter) |
| Lube brand | SAE10W30 (above CC grade) |
| Low oil pressure alarm system | With | With | With | With |
