DM GF-CL(E) Series(1.7kw-5kw)
Light, air cooled, compact, easy to move, low oil protection system, special control panel for your choice.

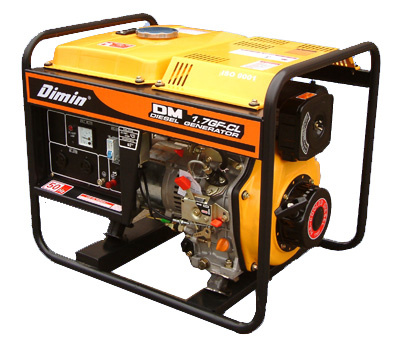

Model:DM1.7GF-CL(E) (1.7kw single phase)
Rated frequency (Hz):50 / 60
Rated voltage (V):110, 120, 220, 230, 240, 220/110, 240/120
Rated output power (kw):1.7 /2
Max output power (kw): 1.9/2.2
DC output:12V / 8.3A
Power factor:1
Phase number:Single phase
Fuel tank capacity (L):12.5
Continuous running time(hr at rated power):14/12
Noise level(db(A)7m (non load to full load):73-77
Dimension (L*W*H) (mm):640*480*530
Packing size (L*W*H) (mm):655*495*550
Net / Gross weight (kg):54 / 58
Starting system:Recoil starting (Electric starting)
Engine model:DM170FG(E)
Engine type:Single-cylinder, 4-stroke, air-cooled, direct-injection, diesel engine
Bore*stroke(mm):70*55
Displacement (cc):211
Rated rotation speed (r/min):3000 / 3600
Structure model:Open-frame
Low oil pressure alarm system
Model:DM3GF-CL(E) (3kw single phase)
Rated frequency (Hz):50 / 60
Rated voltage (V):110, 120, 220, 230, 240, 220/110, 240/120
Rated output power (kw):2.8 /3.3
DC output:12V / 8.3A
Power factor:1
Phase number:Single phase
Fuel tank capacity (L):12.5
Continuous running time(hr at rated power):10/9
Noise level(db(A)7m (non load to full load):73-77
Dimension (L*W*H) (mm):640*480*530
Packing size (L*W*H) (mm):655*495*550
Net / Gross weight (kg):67 / 71
Starting system:Recoil starting (Electric starting)
Engine model:DM178FG(E)
Engine type:Single-cylinder, 4-stroke, air-cooled, direct-injection, diesel engine
Bore*stroke(mm):78*62
Displacement (cc):296
Rated rotation speed (r/min):3000 / 3600
Structure model:Open-frame
Low oil pressure alarm system
Other Models:
DM5GF-CL(E)
DM6GF-CL(E)
