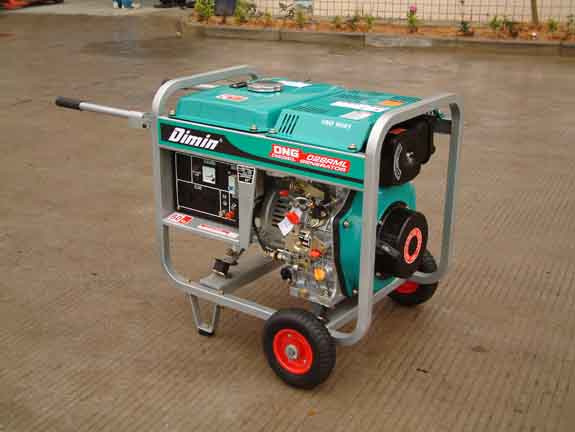

DNG R(E)ML Series (3kw-5kw)
Light, air cooled, compact, easy to move, low oil protection system, special control panel for your choice.
Model:DNG028R(E)ML (2.8kw single phase)
Rated frequency (Hz):50 / 60
Rated voltage (V):110, 120, 220, 230, 240, 220/110, 240/120
Rated output power (kw):2.8 /3.3
Max output power(kw): 3/3.6
DC output:12V / 8.3A
Power factor:1
Phase number:Single phase
Fuel tank capacity (L):12.5
Continuous running time(hr at rated power):10/9
Noise level(db(A)7m (non load to full load):73-77
Dimension (L*W*H) (mm):710*460*555
Packing size (L*W*H) (mm):725*475*575
Net / Gross weight (kg):69 / 78
Starting system:Recoil start (Electric start)
Engine model:DM178FG(E)
Engine type:Single-cylinder, 4-stroke, air-cooled, vertical, direct-injection, diesel engine
Bore*stroke(mm):78*62
Displacement (cc):296
Rated rotation speed (r/min):3000 / 3600
Structure model:Open-frame
Low oil pressure alarm system
Model:DNG042R(E)ML (4.5kw single phase)
Rated frequency (Hz):50 / 60
Rated voltage (V):110, 120, 220, 230, 240, 220/110, 240/120
Rated output power (kw):4.5 /5
Max output power(kw): 5/5.5
DC output:12V / 8.3A
Power factor:1
Phase number:Single phase
Fuel tank capacity (L):12.5
Continuous running time(hr at rated power): 6.5/6
Noise level(db(A)7m (non load to full load):75-79
Dimension (L*W*H) (mm):770*480*580
Packing size (L*W*H) (mm):785*495*615
Net / Gross weight (kg):93 /106
Starting system:Recoil start (Electric start)
Engine model:DM186FG(E)
Engine type:Single-cylinder, 4-stroke, air-cooled, direct-injection, vertical, diesel engine
Bore*stroke(mm):86*70
Displacement (cc):406
Rated rotation speed (r/min):3000 / 3600
Structure model:Open-frame
Low oil pressure alarm system
Other model: DNG042ATS with inbuilt/outbuilt auto-start system
We are a Chinese manufacturer specialized in manufacturing and exporting diesel/gasoline engines, portable generators, gensets, generator and water pump sets, generator & welding sets, lawn mower, garden machinery etc...We have CE&EPA certification and manufacture under ISO 9001 management system. Our products are appearance patented which makes them unique from others. In addition, our engineers develop new style products every year. With reliable quality, competitive price and responsive after service, our products sell well in UK, Greece, Sweden, Middle East, Australia, North America, South America and other countries worldwide and enjoy high reputation and long term relationship with our customers. Besides our brand Dimin, OEM is accepted.
