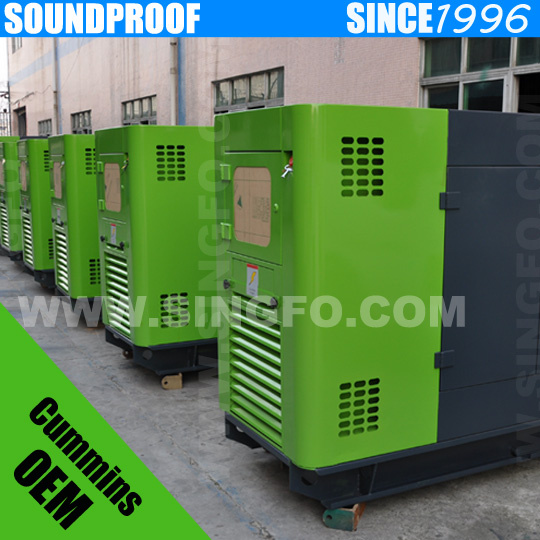

Cummins Diesel Generating Set
Description of Diesel Generating Set:
1) Output range of Cummins silent diesel generator set: 20kW (25KVA) up to 900kW (1125KVA),
Engine: Cummins Diesel Generating Set
Diesel Generating Set type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
Alternator: Stamford, Marathon, Leory somer, Learnt
Exciter type: Brushless, self exciting
2) Engine model: 4B3.9-G(1/2), 4BTA3.9-G(1/2), 6BT5.9-G(1/2), 6BTA5.9-G2, 6BTAA5.9-G2, 6CTAA8.3-G(1/2), 6LTAA8.9-G2
3) daily used fuel base tank
4) Key start / auto start
5) Sound-proof / weather-proof canopy is optional
6) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
7) Control system of Diesel Power Generator Set:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display of Diesel Genset:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
8) Starting system: DC alternator is used to start engine
9) Short circuit protection: MCCB air switch
10) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40? C
11) Filter system: Oil, fuel and air filter
12) Accessories: Exhaust elbow, bellow, muffler
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer Packing: Wooden case
Optional Accessories: ATS, Battery charger.
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
