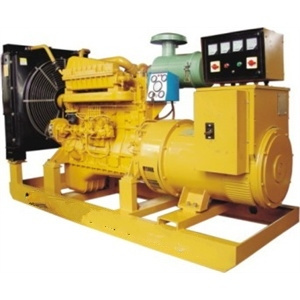

Diesel Generating Set 250kw (G128ZLD11)
SHANGCHAI series generator sets adopt 6135&12V135 series diesel engine made by Shanghai Engine Co., Ltd...6135&12V135 series are water-cooled engine in industry, 24VDC working voltage for control syatem, adopt circumvolve fuel filter&oil filter cleaner, dry air cleaner, compact structure, fine quality, reliable capability.
Generally the generators adobt our company's TFW2 series brushless three phase synchronous generator. If the customer requires that also could adopt TFX series compound excitation generator or STC series third-harmonic excitation generator or other generators.
The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a. C. Ampere meter, d. C. Ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer.
The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed); Also can design for silent, fully automatic transfer and automatic parallel system.
| Shangchai 250KW generator set technical data |
| Output power(KW) | 250 |
| Output Capacity(KVA) | 312.5 |
| Model | 250-GF |
| Power Factor | ≥ 0.8 |
| Frequency(Hz) | 50/60 (negotiable) |
| Output Voltage(V) | 220/380 (negotiable) |
| Output currency(A) | 450 |
| Dimensions L× W× H(mm) | 3000*1400*2000 |
| Net Weight(kg) | 2600 |
| Engine Data |
| Producer | Shanghai | Rated speed(RPM) | 1500/1800 (negotiable) |
| No. of cylinder | 6 | Fuel specification and class | 0# light diesel |
| Orientation of cylinder | L | Fuel consumption(ml/kw) | 220 |
| Bore× Stroke(mm) | 135/150 | Lubricating oil specification and class | Above API-CD |
| Cylinder total volume(L) | 14 | Total capacity of lube oil(L) | 36.7 |
| Compression ratio | 14.0: 1 | Max lube oil temperature(C) | 121 |
| Air admission way | Turbocharged inter-cooled | Max oil consumption(L/h) | 0.24 |
| Thermostat attemper range(C) | 82-93 | Max temperature of discharging smoke(C) | 535 |
| Permitted max backpressure(Kpa) | 10 | Intake resistance(KPa) | 3.73 |
| Cooling Method | Closed-cycle water cooling | Oil consumption with full load(L/H) | 55 |
| Coolant volume(L)only for motor | 20.8 | Max coolant temperature(C) | 100/104 |
| Engine oil lubricating method | rotary engine oil | Dry-type air cleaner |
|
| Generator Data |
| Producer | Stanford |
| Voltage setting range | ≥ ± 5% | steady voltage regulation factor | ≤ ± 1.0% |
| Temperature rise | H | Voltage control mode | AVR(SMAVC6307) |
| Class of insulation | H | Overload capacity | 1.5times, 2 minutes |
| Grade of Protection | IP22 | Short circuit capacity | 3times, 2 seconds |
| Efficiency | 93.60% | Cooling method | Self-cooled |
| Electromagnetism interference factor | THF< 2%, TIF< 50 | Rotor type | Saliency type |
