| Model of Gen-set | Unit | 1GF | 2GF | 3GF | 5GF | 8GF | 10GF | 12GF | |
| Rated power | KW | 1 | 2 | 3 | 5 | 8 | 10 | 12 | |
| Diesel Engine | Model | 165F | 170F(D) | R175(ND) | S195(ND) | S1100(ND) | ZH1105(ND) 295D | ZH1110(ND) 295D | |
| 12Hours Ratedoutput | kw/ps | 2.21/3 | 2.94/4 | 4.4/6 | 8.8/12 | 11/15 | 13.2/18 | 14.7/20 | |
| Fuel Consumption | g/kw.h | 292.3 | 257 | 246.2 | 248.2 | ||||
| Cooling Method | Air/water-cooled | Evaporation or Radiator | |||||||
| Starting Method | Hand Cranking or Electric Starting | ||||||||
| Generator | Model | ST-1 STC-1 | ST-2 STC-2 | ST-3 STC-3 | ST-5 STC-5 | ST-8 STC-8 | ST-10 STC-10 | ST-12 TFW-12 | |
| Rated Output | KW | 1 | 2 | 3 | 5 | 8 | 10 | 12 | |
| Rated Voltage | V | 230V/115V or 400V/230V | |||||||
| Rated Current | A | 4.34 1.8 | 8.7 3.6 | 13 5.4 | 21.8 9 | 34.8 14.4 | 43.5 18.1 | 52.1 21.7 | |
| Frequency | Hz | 50/60Hz | |||||||
| Power Factor | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | 1 0.8 | ||
| Phase/Connection | 1-Phase or 3-Phase 4-Wire | ||||||||
| Excitation | Harmonic Excitation or phase compund or brushless | ||||||||
| Control Panel | Model | BF-S-12 | |||||||
| Voltage Regulation | Manual or Automatic | ||||||||
| Net Weight | kg | 90 | 130 | 150 | 320 | 340 | 360 | 380 | |
| Net Weight | kg | 110 | 150 | 170 | 360 | 380 | 400 | 420 | |
| Packing Size L x W x H mm | cm | 100x52x65 | 100x52x65 | 100x52x65 | 135x71x76 | 135x71x76 | 140x71x76 | 140x71x76 | |

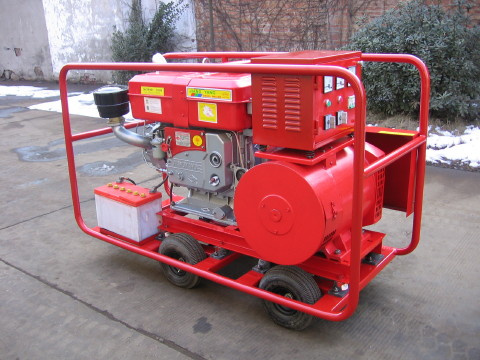

| Prod Model: | 2-12GF(Bell-Coupled) |
|---|
