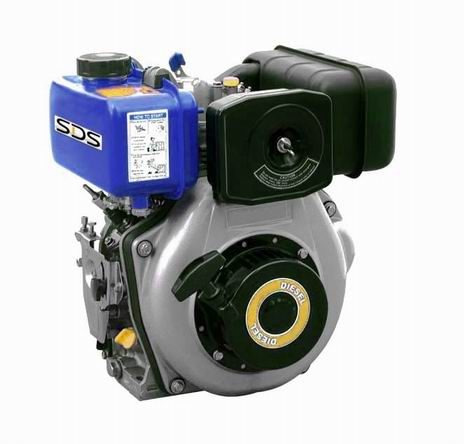

Diesel Engine Series
Features:
Air-cooled Direct injection
4 to 10 hp
Light weight and compact design
Efficient Air-cleaner system
Easy and fast starting
Low noise & vibration
Low fuel consumption
Long service life
CE/EPA conformed
Model: SD170/E
Type: Single-cylinder, vertical, 4-stroke, diesel engine
Combustion system : Direct, injection
Displacement (cc): 211
Bore*stroke (mm): 70*55
Engine speed (rpm): 3000 /3600
Max. Output (ps): 3.8 / 4.2
Continuous output (ps): 3.4 /3.8
Power-take-off: Crankshaft or camshaft (Camshaft PTO rpm is 1/2)
Starting system: Recoil or recoil/Electric
Fuel: 0# (summer), -10# (winter) diesel oil
Lube: SAW 10W30 (above CC grade)
Fuel tank capacity (L): 2.5
Lube oil capacity (L): 0.75
Dimension (L*W*H) (mm): 332*384*416
Dry weight (Recoil) (kg): 26
Dry weight (Electric) (kg): 31
Fuel consumption (g/KWh): 3000rpm—280 & 3600rpm—288
Model: SD178/E
Type: Single-cylinder, vertical, 4-stroke, diesel engine
Combustion system : Direct, injection
Displacement (cc): 296
Bore*stroke (mm): 78*62
Engine speed (rpm): 3000 /3600
Max. Output (ps): 5.5 / 6.0
Continuous output (ps): 5 / 5.5
Power-take-off: Crankshaft or camshaft (Camshaft PTO rpm is 1/2)
Starting system: Recoil or recoil/Electric
Fuel: 0# (summer), -10# (winter) diesel oil
Lube: SAW 10W30 (above CC grade)
Fuel tank capacity (L): 3.5
Lube oil capacity (L): 1.1
Dimension (L*W*H) (mm): 383*421*450
Dry weight (Recoil) (kg): 33
Dry weight (Electric) (kg): 38
Fuel consumption (g/KWh): 3000rpm—276 & 3600rpm—285
Model: SD186/E
Type: Single-cylinder, vertical, 4-stroke, diesel engine
Combustion system : Direct, injection
Displacement (cc): 406
Bore*stroke (mm): 86*700
Engine speed (rpm): 3000 /3600
Max. Output (ps): 8.5 / 9.5
Continuous output (ps): 7.7 / 8.5
Power-take-off: Crankshaft or camshaft (Camshaft PTO rpm is 1/2)
Starting system: Recoil or recoil/Electric
Fuel: 0# (summer), -10# (winter) diesel oil
Lube: SAW 10W30 (above CC grade)
Fuel tank capacity (L): 5.5
Lube oil capacity (L): 1. 65
Dimension (L*W*H) (mm): 417*470*494
Dry weight (Recoil) (kg): 45
Dry weight (Electric) (kg): 50
Fuel consumption (g/KWh): 3000rpm—275 & 3600rpm—281
Model: SD186A/E
Type: Single-cylinder, vertical, 4-stroke, diesel engine
Combustion system : Direct, injection
Displacement (cc): 418
Bore*stroke (mm): 86*72
Engine speed (rpm): 3000 /3600
Max. Output (ps): 8.85/ 9.5
Continuous output (ps): 8.5/ 8.85
Power-take-off: Crankshaft or camshaft (Camshaft PTO rpm is 1/2)
Starting system: Recoil or recoil/Electric
Fuel: 0# (summer), -10# (winter) diesel oil
Lube: SAW 10W30 (above CC grade)
Fuel tank capacity (L): 5.5
Lube oil capacity (L): 1.65
Dimension (L*W*H) (mm): 417*470*494
Dry weight (Recoil) (kg): 45
Dry weight (Electric) (kg): 53
Fuel consumption (g/KWh): 3000rmp—275 & 3600rpm—281
