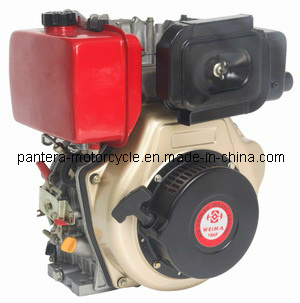

Engine type: Single-cylinder, Vertical 4-stroke, forced air-cooled
Combustion System Direction injection
Bore*Stroke(mm) 86*70
Displacement(ml) 406
Engine rotation speed(rpm) 3600
Power(HP) Max 9.5
Rated 8.5
Direction of revolution Left(form POT side)
PTO shaft Crankshaft or camshaft(camshaft PTO rpm is 1/2c crankshaft)
Fuel tank capacity(L) 5.5
Lube capacity(L) 1.65
Fuel/Lube 0# in summer, -10# or-20# in winter/SEA 10W30
Starting mode Recoil start
N. W(KG) 48
Dimension(L*W*H)mm 530*510*575
20FT Volume(set) 176
We are one leading manufacturer of motorcycles & tricycles located in China. We produce more than 100 different models, including dirt bikes, street motorcycles, mopeds, scooters, motorcycle spare pats, helmet, and motorcycles engine...All products have ISO9001 certificate.
Some of them have passed the EEC certificate.
Pantera is devoted to serve the needs of the customers for the whole world. Today our products are exported to many countries, including Africa, Middle East, South America, Europe.
Pantera provides quality products and good service after sales.
OEM is welcome.
You are welcome to contact us for more information.
