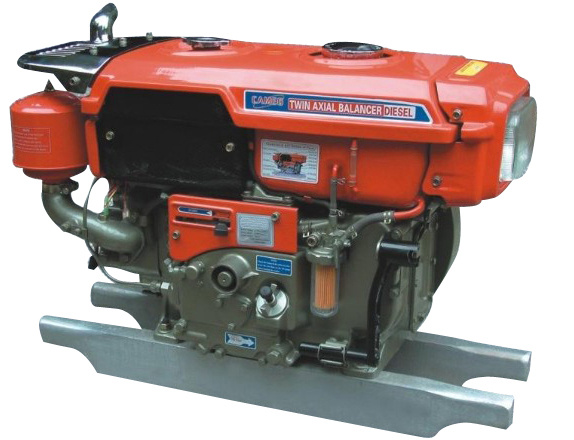

MAIN CHARACTERISTICS
1. KUBOTA model, every parts are interchangeable with original kubota.
2. Campact in structure, nice in appearace, lighter in weight, smaller in size.
3. Lower noise, lower fuel consumption, higher output.
4. Low vibration, smooth running, reliable performance.
5. Easy to start, easy to maintence.
These diesel engines are perfect power for small tractors, farm vehicles, three-wheeled automobiles, water pumps, small generators, inland boats, engineering machineries, drainage and agricultural products and Processing, equipments such as threshers and fodder grinders.
|
MODEL |
CP95 |
CP110 |
CP120 |
CPD110 |
CPD120 |
|
TYPE |
Single cylinder horizontal four stroke diesel engine |
|
Bore x stroke (mm) |
86 x 90 |
92 x 90 |
94 x 90 |
92 x 90 |
94 x 90 |
|
Compression ratio |
21: 1 |
18: 1 |
|
Combustion chamber type |
swirl-chamber |
Direct Injection |
|
Rated output Kw(hp) |
6.25(8.5) |
7.35(10) |
8.09(11) |
7.35(10) |
8.09(11) |
|
Max output Kw(hp) |
6.99(9.5) |
8.09(11) |
8.8(12) |
8.4(11.4) |
9.55(13) |
|
Rated speed ( rpm ) |
2400 |
|
Fuel consumption at rated output g/kwh( g/hph ) |
less than286.210 ) |
less than250 ( 184 ) |
|
Max torque (N. m) |
29.4(3.0) |
34.5(3.5) |
38.2(3.9) |
35(3.6) |
38.8(3.95) |
|
Speed at max. torque( rpm ) |
1850 |
|
Lubrication method |
Pressure combined with splashing |
|
Cooling system |
Radiator |
|
Starting method |
Hand starting or electric starting |
|
Head lamp |
12V 45W/45W |
|
Dry weight/Gross weight(kg) |
105/110 |
110/115 |
110/117 |
110/115 |
112/117 |
|
Packing dimension: L*W*H |
830*380*645 (106sets/20GP) |
