MAIN CHARACTERISTICS
1. Yanmar model.
2. Compact in structure, nice in appearance, lighter in weight, smaller in size.
3. Adopt special small size direct injection combustion system, lower fuel consumption, higher output.
4. Low noise, low vibration, smooth running, reliable performance.
5. Adopt hand recoil start method to make the engines easy to start.
6. There are multiple ways of power output for your choice.
MAIN USES: The engines are perfect power for mini-tillage machines, generator sets, water pump sets and agricultural product processing machineries.

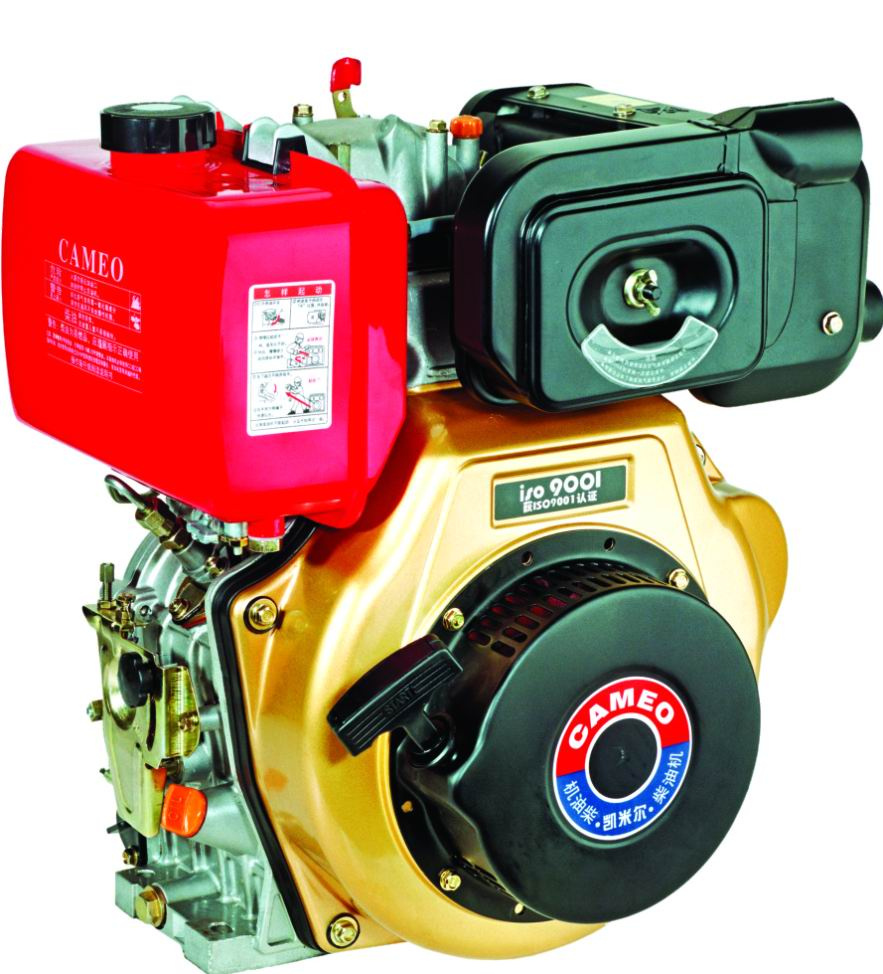

| Model | CP170F/CP170FE | CP178F/CP178FE | CP186F/CP186FE | CP186FA/CP186FAE |
| Type | Single-sylinder, vertical,4-stroke,air-cooled diesel engine |
| Combustion system | Direct injection |
| Bor e × s troke(mm) | 70 × 55 | 78 × 62 | 86 × 70 | 86 × 72 |
| Displacement(cc) | 211 | 296 | 406 | 418 |
| Engine speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Max. output(hp) | 3.8 | 4.2 | 5.4 | 6.0 | 8.6 | 9.0 | 8.7 | 9.3 |
| Cont. output(hp) | 3.4 | 3.8 | 5.0 | 5.4 | 7.7 | 8.6 | 7.9 | 8.8 |
| Starting system | Recoil/Electric |
| Power output method | Crankshaft/Camshaft(The speed of camshaft is 1/2 of the Crankshaft’s) |
| Rotary direction of output axis | Left(View in the direction of output axis) |
| Fuel/lubrication(L) | 0# in summer,-10# or -20# in winter light diesel fuel/SAE 10W30 |
| Fuel capacity (L) | 2.5 | 3.5 | 5.5 | 5.5 |
| Lubrication capacity (L) | 0.8 | 1.1 | 1.7 | 1.7 |
| Recommended starting system | 12V-18AH | 12V-24AH | 12V-35AH | 12V-35AH |
| Net weight | 27 | 33 | 48 | 48 |
| Overall dimensions (L ×W ×H ) | 332 × 392×416 | 383 × 421×450 | 417 × 470×494 | 417 × 470×494 |
Chongqing Camel Power Machinery Co., Ltd. (CCPMC) is a manufacturer of agricultural machinery and an export base in Chongqing. Our company specializes in producing high quality, medium and small power diesel engines, walking tractors, generators and water pump sets. Our well-know brand "CAMEO" gained the honor of "Best Export Brands of Chongqing for Priority Cultivation and Development in 2006-2007" from Chongqing Municipal Government.
Under the management of MBA degree members, national grade internal combustion engine experts and with the support of advanced production and inspection methods as well as a perfect product development and quality guarantee system, CCPMC passed ISO9001: 2000 certification and the test of Thai Industrial Standard from Thai Industrial Standards Institute and Ministry of Industry of Thailand. Our sound worldwide marketing and satisfactory after-sales service network makes our products more and more popular. Now our annual production capacity of high and medium grade diesel engines, diesel water pumps, and diesel generators reaches100, 000 sets.
CCPMC insists on the theory that "quality is eternal object; Perfect product based on conscientious hard work". With exclusive technology and years' manufacture experience, CCPMC hopes to cooperate with friends both at home and abroad for mutual benefit.
