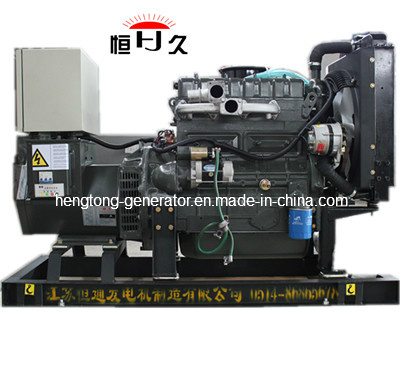

Diesel Electric Generator (30KW)

Chinese Brand Diesel Generator (GF30)

A: Open Type Diesel Gen Set Information
- Brand: Weichai (Hengjiu or OEM)
-Type: GF30
-Output Type: AC 400V 50Hz Three-Phase Four-Wire
-Controller Basic Control System
-Prime Power (kVA):
-Standby Power (kVA): 37.5
-Rated Current (A): 54
-Cooling System: Water Cooling
-Weight (Kg): 650
-Dimension (mm): 1680*720*1070

B: Own Brand: Hengjiu (HJI Series)
-Type: Cummins (Hengjiu or OEM)
-Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.
-Output Type: AC Three-Phase
-Frequency: 50/60 Hz
-Rated Power (kVA): 37.5
-Insulation Degree: H
-Bearing Number: Single/ Double
-Protection Degree: 23
-Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

C: Diesel Engine Information
-Optional Diesel Engine: Weichai K4100D
-Output Type: 1500RPM 24V Electrical Start
-Rated Power (kw):
-Cylinder No.: 4
-Bore * Stroke (mm): 100*115
-Displacement (L): 3.61

D: Test before shippment
- Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload.
- Noise level shall be tested.
- All of the meters on the control panel shall be tested.
- The appearance of the Set and the label, nameplate shall be tested. "
-Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

E: Packing & Warranty
- Packing: Wooden, Plywood or Metal Case.
- Delivery Time: Less than 25 working days after receiving prepayment.
- Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

F: Generator Set with Silent Canopy:

The silent generator set produced by Hengtong is scientifically designed, in which such advanced technologies in the field of acoustics and airflow science are adopted, thus casuing its noise reduced to 68-75dB (An average value measured at 7 meters away from the set), It is applicable to the places, where there are high requirments for the noise, such as hospital, residential quarters and office buildings.

G: Control System:

Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

H: Optional AST & ATS Control System:

AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.

ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
