Our products,such as Super silent generator,soundproof type generator,Diesel generator,Gasoline generator,generator sets,generator engine,water pump and fire pump, etc.
Western Union (China) Industrial CO.,LTD is located in the third biggest city-GuangZhou in China and now had been one of the fastest developed generator sets manufacturer.We specialize in production, sales and after-sales serveice of power supply system-diesel generator sets.
Quality is always the most concerned factor in our company.We have high-performing quality control system and have been certificated by ISO9001/CE/TS16949.Under the quality control system the performance of our products can be guaranteed.
We currently have long time strategic partnership with CUMMINS,PERKINS,DEUTZ,ISUZU,YACHAI,WEICHAI,HUADONG,etc.
Our generators seel all over the world including Southeast Asia, Middle East, Africa, Europ and USA markets.
Noise level (dBA at 7M):≤63(super silent/soundproof type),seperated output cable box ,easy for cable connection.The performance of weatherproof is higher.
FYI:
This is our website: http://nutunion.en.made-in-china.com/
|
GENERATOR |

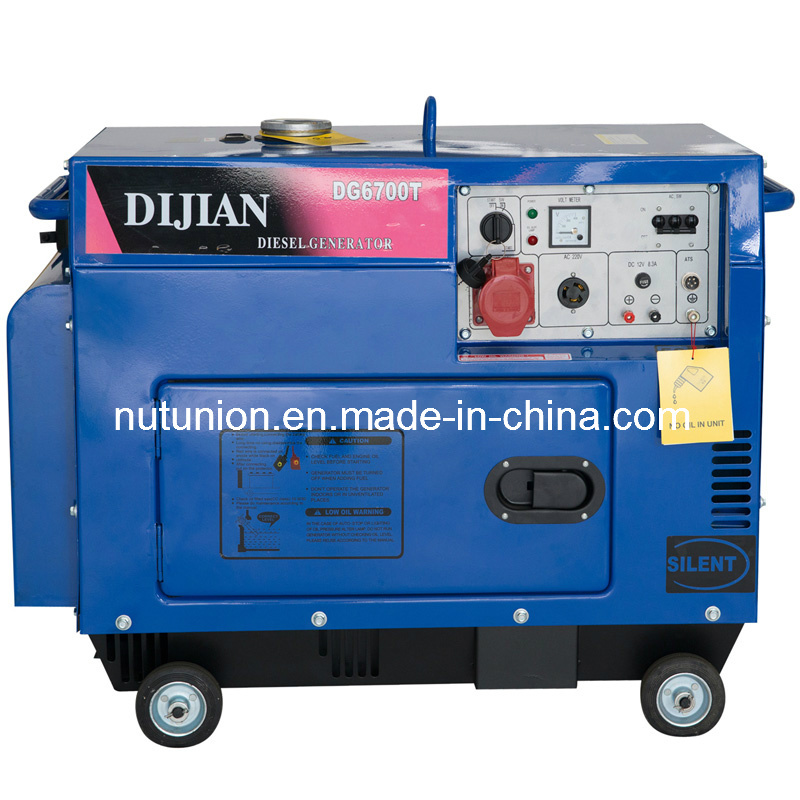

Model |
DG6700T |
|
Frequency(Hz) |
50 |
|
Max.output(kw) |
5 |
|
Rated.AC voltage(V) |
120.220.230.120/240 |
|
Power factor Cosø |
Cosø=1 |
|
DC output (V) |
12V/8.3A |
|
Phase |
Single phase |
|
Alternator type |
Self-excited,2-pole,single phase alternator |
|
Starting system |
Electric Starter |
|
Operating noise level(at 7m) |
65--70 DB |
|
Fuel tank capacity |
16 |
|
ENGINE |
Model |
HR 186F |
|
Engine type |
Single-cylinder,vertical,4-stroke air-cooled diesel engine |
|
Bore X stroke(mm) |
86 X 72 |
|
Fuel |
0# or -10#light diesel oil |
|
Lubrication oil volume(l) |
1.65 |
|
Conbution system |
Direct injection |
|
STANDARD FEATURES |
Voltmeter |
YES |
|
AC output socket |
2 |
|
AC circuit breaker |
YES |
|
Oil warning light |
YES |
|
Oil alert |
YES |
|
Three phase voltage(380V) |
optional |
|
ATS |
optional |
|
Welding |
optional |
|
DIMENSIONS |
Dimension (LXWXH) (mm) |
950X560X710 |
|
Dry weight(kg) |
175 |
|
20FT |
72 |
Western Union (Foshan) Industrial Co., Ltd.Committed to providing customers with high-quality power products and perfect service system, our products including diesel generators, gasoline generators, pumps, generator welders, construction engineering machinery.Customers throughout the multiple industry sectors such as power supply, railways, telecommunications, mobile, banking, oil field, traffic, city, hotel, household, hospital, etc...
The company has industry-leading research and development technology, strong comprehensive strength, With more than 30000m2 of large factory, warehouse and office building, Mainly developes own-brand productions and be the sales agent for the imported brand power products.
With outstanding production capacity and high quality control, in 2008 we became one of the important partners of the British NUT industry group, the British Perkins power group, the Stanford motor, the United States Cummins power, (the world's four big power manufacturers) in China.We passed the ISO9001:2008, CCC, CE TUV certification.Products are exported to many countries around the world.
Sticking to the principle of providing customers with high quality affordable energy products gains high endorsement from partners both at home and at abroad.
"The quality is the life of the enterprise" is our everlasting goal.Western Union Industrial establishes a good long-term relations of cooperation with the general channel distributors and retailers in the world, to provide users with high quality and reliable power products and make the perfect solution.
We look forward to cooperate with the customers and common progress, to achieve mutually beneficial and win-win goal!
