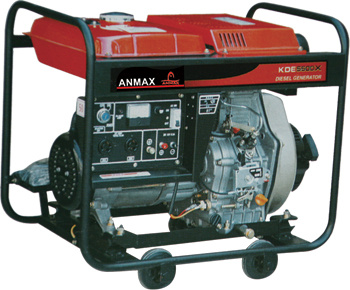

DG5500CL/E
Gasoline generator
1)1-cylinder, 4-stroke, air-cooled diesel engine,
2)starting system: Electric start
3)SONCAP, EPA, CE
4)Package: Common carton or color carton
5)Brand: Can be customers
Advantage
1. CE Certificate
2. High Quality
3. Competitive price
4. Delivery time 25 days
5. Monthly Productivity: 15000 sets
| Rated frequency(Hz) | 50 | 60 |
| Rated voltage(V) | 230 | 240/120 |
| Rated current(A) | 7.4 | 8.3/16.7 |
| Rated output power(KVA ) | 1.7 | 2.0 |
| Rated rotation speed(rpm) | 3000 | 3600 |
| DC output | 12V8.3A |
| Power factor(cosφ ) | 1 |
| Phase number | Single phase |
| Noise level[dB(A)@7m] | 72~77 |
| Overall dimension(L*W*H )[MM(IN)] | 660480*540 |
| Dry weight[kg(lbs. )] | 53recoil 100E/S |
| Structure type | Open-frame type |
| Coupling mode | Rigid couping By rotor drive shaft |
| Engine model | 170F/E |
| Engine type | Single cylinder, 4-stroke, Air-cooled, direct injection, Diesel engine |
| Displacement[ml(cu. In)] | 406(24.78) |
| Compression ratio | 20:1 |
| Rated power[kW(HP)/rpm] | 2.5(3.4)/3600 |
| Starting system | recoil starter E: Electric starter |
| Rotation direction(View from flywheel) | Clockwise |
| Fuel | 0#(summer)-10#(winter) light diesel oil |
| Lube | SAE10W30(above CC grade) |
| Low oil pressure alert system | With |
Changzhou Beiante Power Machinery Co., Ltd. is a professional supplier of gasoline and diesel generators, engines, water pumps, construction machines, and spare parts.
At the beginning of 2006, we passed ISO9001: 2000 international quality control system certification. We have also attained the certificates of EPA, CE and SONCAP. Our products have reached the environment protection and quality safety standards of European and American countries.
We attain a good reputation among our customers and enjoy a higher reputation and influence in the markets. If any of products interest you, please contact us.
