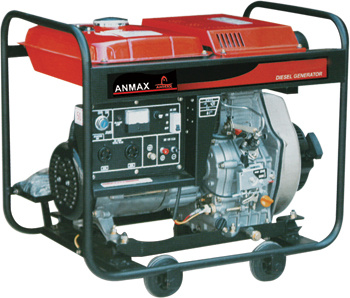

DG2500CL/E
Rated frequency(Hz): 50 60
Rated voltage(V): 230 240/120
Rated current(A): 7.4 8.3/16.7
Rated output power(KVA ): 1.7 2.0
Rated rotation speed(rpm): 3000 3600
DC output: 12V8.3A
Power factor(cosφ ): 1.0
Phase number Single phase
Noise level[dB(A)@7m]: 72~77
Overall dimension(L× W× H )[MM(IN)] 660 × 480× 540
Dry weight[kg(lbs. )]: 53recoil 60E/S
Structure type Open-frame type
Coupling mode Rigid couping by rotor drive shaft
Engine model 170F/E
Engine type Single cylinder, 4-stroke, air-cooled,
Direct injection, diesel engine
Displacement[ml(cu. In)]: 211(12.88)
Compression ratio: 20: 1
Rated power[kW(HP)/rpm]: 2.5(3.4)/3600
Starting system recoil starter E: Electric starter
Rotation direction(View from flywheel) Clockwise
Fuel 0#(summer)-10#(winter) light diesel oil
Lube SAE10W30(above CC grade)
Low oil pressure alert system With
Changzhou Beiante Power Machinery Co., Ltd. is a professional supplier of gasoline and diesel generators, engines, water pumps, construction machines, and spare parts.
At the beginning of 2006, we passed ISO9001: 2000 international quality control system certification. We have also attained the certificates of EPA, CE and SONCAP. Our products have reached the environment protection and quality safety standards of European and American countries.
We attain a good reputation among our customers and enjoy a higher reputation and influence in the markets. If any of products interest you, please contact us.
