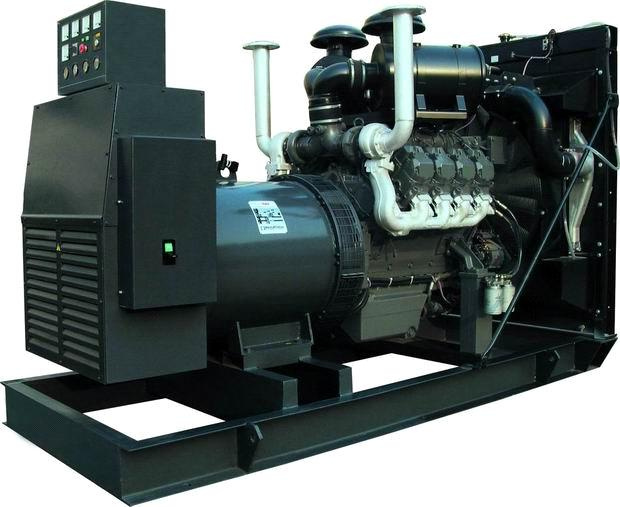

Deutz Power 450kw Diesel Genset

Deutz Power 450kw Diesel Genset
Price: US $ 1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Competitive price deutz 450kw diesel generator set

Small size, low weight, easy to operating, installation and maintenance
Performance Feature
· Engine and alternator shall be mounted on a same frame steel skid.
· Built-in damper for anti-vibration.
· Small size, low weight, easy to operating, installation and maintenance.
· World most famous brand diesel engine.
· World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
· Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
· Full range protect function and alarm shutdown feature.

Alternator Feature
· Brush-less, 4 poles, rotation magnet.
· IP21-23(NEMA1) enclosure is standard for all industrial alternators.
· The insulation system is Class H
Generator-set Specification Data
Generator-set Diesel Engine (DEUTZ)  Alternator (Stamford)
Model 450GF Model BF8M1015CP-LA G4 Model HCI5E
Rated power 450KW Prime power 490KW Rated power 488KW
Max. power 490KW Stand power 530KW Rated voltage 400V/230V
Rated voltage 400/230V Rated speed 1500rpm Efficiency 94.90%
Rated frequency 50Hz No. of Cylinder 8 Rated current 878A
Rated currency 812A Bore/stroke 132/145 Power factor 0.8
Power factor 0.8 Cylinder arrangement V Frequency 50Hz
Steady state volt deviation ≤ ± %1 Fuel consumption 208g/kwh Protection/ insulation IP23/H
Steady state frequency ≤ 1.5% Start mode 24V electrical Exciting way brushless self-exciting
Frequency drop scope ≤ 5% Governor electronic Weight 1498kg
Phase three phase Aspiration type Turbocharged inter-cooled
Base Frame steel Cooling way Water cooled
Dimension 3120× 1650× 2015 Displacement 15.874L
(mm)
Weight 3500kg Weight 1060kg
Running Condition: According: GB/T2820; Altitude: 0~1000m; Ambient temperature: -35~40° C; Relative humidity: 95%
Standard scope of supply: Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)
Option: base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc). Different alternator brands available. One phase is optional.
Control system function: start and stop function.
Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc.
Failure protection(alarm and stop)function: over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
Prod Model: WT450GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Brand: Deutz Diesel Engine
Frequency: 50 or 60Hz
Alternator: Stamford, Marathon
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.

We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.

Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.

Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.

Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom

To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.

When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
