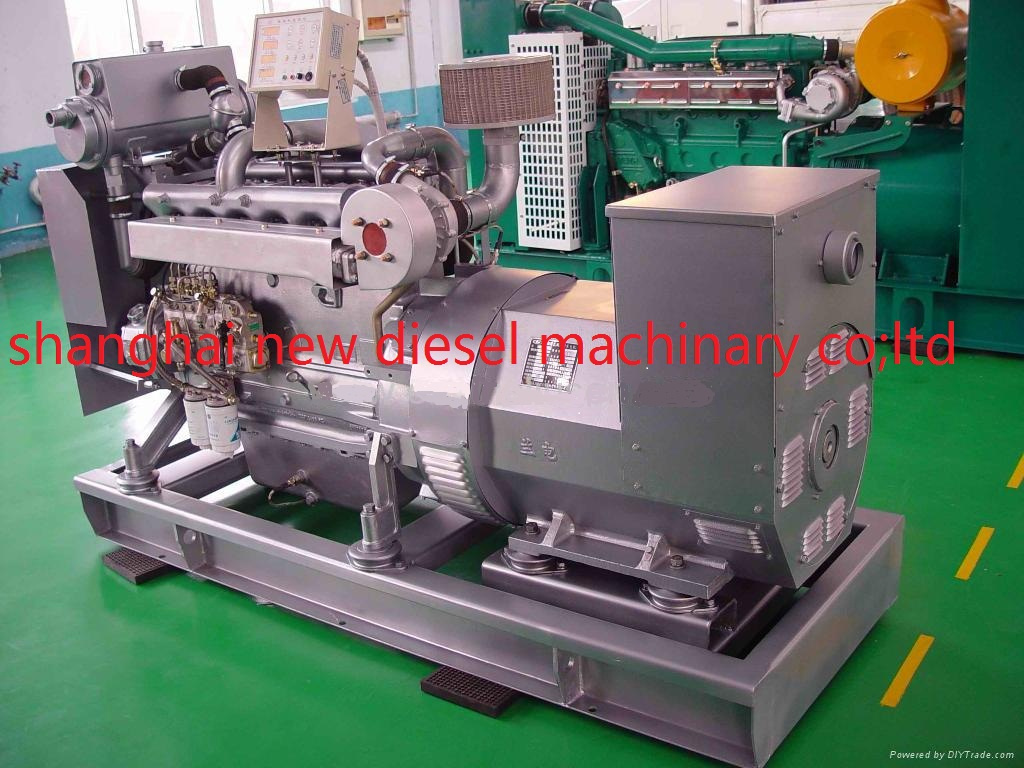

Deutz Marine Generator set 's parameter as belowe:
Features:
1) Deutz series marine generator adopt Detuz engine which are produced by the joint venture of our company DEUTZ, Germany
2) Assembled with famous alternators such as Stamford and Marathon etc.
3) DEUTZ water cooled engines from 10 kW to 7200 kW can be offered.
Engines, complete marine propulsion systems and generating sets can be delivered.,
DEUTZ air cooled engines from 10 kW to 400 kW can also be offered.
Genset model |
Continuous output(kW) |
Rated voltage(V) |
Rated currency(A) |
Rated loading fuel consump(kg/h) |
Engine model |
Ma* output(kW) |
Rated speed(r/min) |
Governing method |
Starting method |
Cooling method |
Exciting method |
Alternater manufacturer |
dimension(L*W*H)MM |
|
CCFJ24J-WJ |
24 |
400 |
43.5 |
4.8 |
D226B-3CD |
33 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
1376*620*1231 |
|
CCFJ30J-WJ |
30 |
400 |
54 |
5.9 |
TD226B-3CD |
44 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
1427*620*1231 |
|
CCFJ40J-WJ |
40 |
400 |
72 |
7.9 |
TD226B-4CD |
66 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
1663*620*1242 |
|
CCFJ50J-WJ |
50 |
400 |
90 |
9.9 |
TD226B-4CD |
66 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
1663*620*1242 |
|
CCFJ64J-WJ |
64 |
400 |
115 |
12.8 |
TD226B-6CD |
99 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
2008*798*1336 |
|
CCFJ75J-WJ |
75 |
400 |
135 |
16 |
TD226B-6CD |
99 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
2008*798*1336 |
|
CCFJ90J-WJ |
90 |
400 |
163 |
18 |
TBD226B-6CD |
132 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
2096*798*1336 |
|
CCFJ100J-WJ |
100 |
400 |
181 |
20 |
TBD226B-6CD |
132 |
1500 |
Mechanical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
2096*798*1336 |
|
CCFJ120J-WJ |
120 |
400 |
217 |
24 |
TBD226B-6CD5 |
145 |
1500 |
Electrical |
Electrical |
Dual-circulate water-cool |
Brushless |
Marathon |
2108*798*1336 |
|
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
