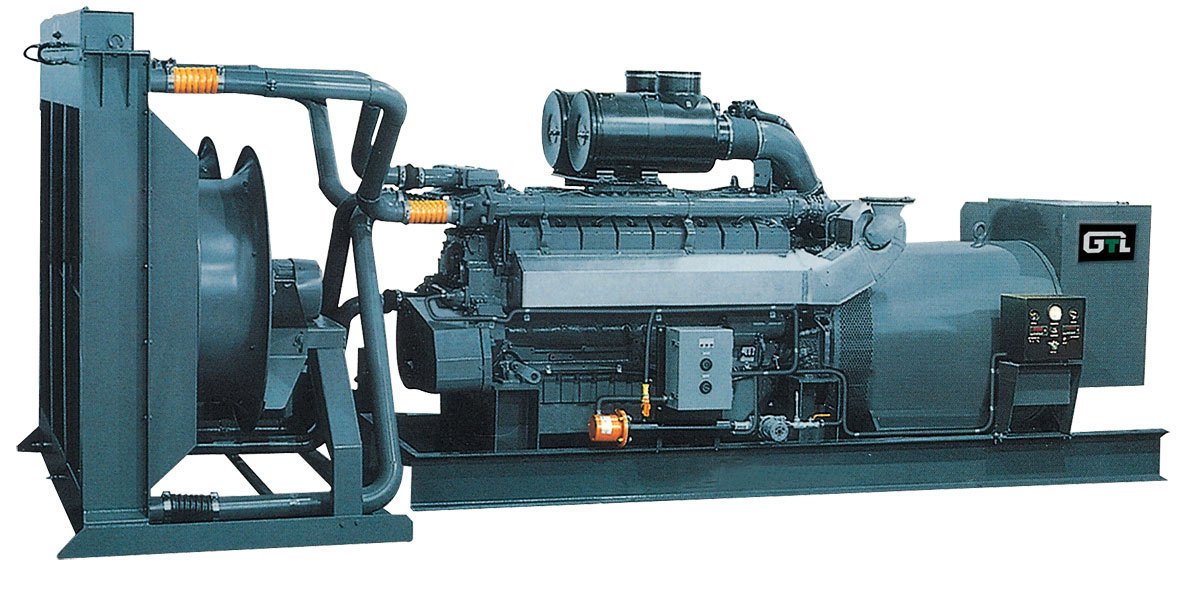

GTL Deutz generator set, Power generator
Product detailed description:
This genset introduced Germany Deutz engine with high quality and good performance
If choosed with canopy, the genset will has perfect-weather service property and the outside steel material features preferable capability
Features:
1) Engine: MWM under licence of Deutz
2) Power Range: Power range: 160KW~1600KW
3) Frequency: 50Hz/60Hz
4) Rated Speed: 1500rpm/1800rpm
5) Rated Voltage: 400/230V(50Hz), 480/277V(60Hz)
6) Three-phase voltage available: 480/277V, 440/254V, 416/240V, 220/127V, 207/120V
7) Protection: IP23
8) Insulation: H
Specifications:
1) Diesel engine: Deutz engine
A) Governer Method: Electrical or mechanical governor
C) Water cooling
D) Intake method: Natural apirated or turbocharged
2)Alternator
A) alternator: Leroy Somer, Stamford, or Marathon
B) Inspiration Method: Natural Aspirated or Turbocharged
C) Excitation Way: Brushless Excitation
D) Governor Method: Electrical or Mechanical Governor
E) Cylinder: 6V~ 12V/6L~16V
F ) Phase: 3pH, star, 3pH-DELTA
G) Rated power factor: 0.8(lagged)
H) Standard 2/3 pitch windings
I) Voltage Regulation: ± 0.5%
J) Exciter type: PRET or Shunt
K) Votagle regulator: AVR (Automatic Voltage regulator)
3)Control system:
A)Automatic alarm system: The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current
B) Operation display:
I)Unit voltage, tri-phase load current and frequency display
Ii)Water temperature, oil pressure display
Iii)Fuel level, fuel temperature dieplay
Iv)Audible and visual alarm lamps and buzzers
C)Emergency stop button
D)Three protection
4)AMF, ATS, Soundproof / weather-proof canopy and movable trailers for Choices.
Sound attenuated enclosure: Special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability
Packing: As per customers requirements.
After 10 years of development, GTL company in energy generator industry has accumulated rich experience in manufacturing, the leading status. Headquarters is located in Xiamen, China.
Here, design, manufacture and sales of GTL brand series products and related technologies, and through the agency of global each country dealer network to provide customers with technical service. Products are widely used in office building, hospital, factories, municipal, power plants, university, entertainment. Besides, GTL can also according to customer special power needs to provide specific solutions for various industries and provide efficient and reliable electricity.
GTL production base in xiamen strictly enforce the ISO9000 quality and the industry standard, in order to ensure product outstanding quality.
