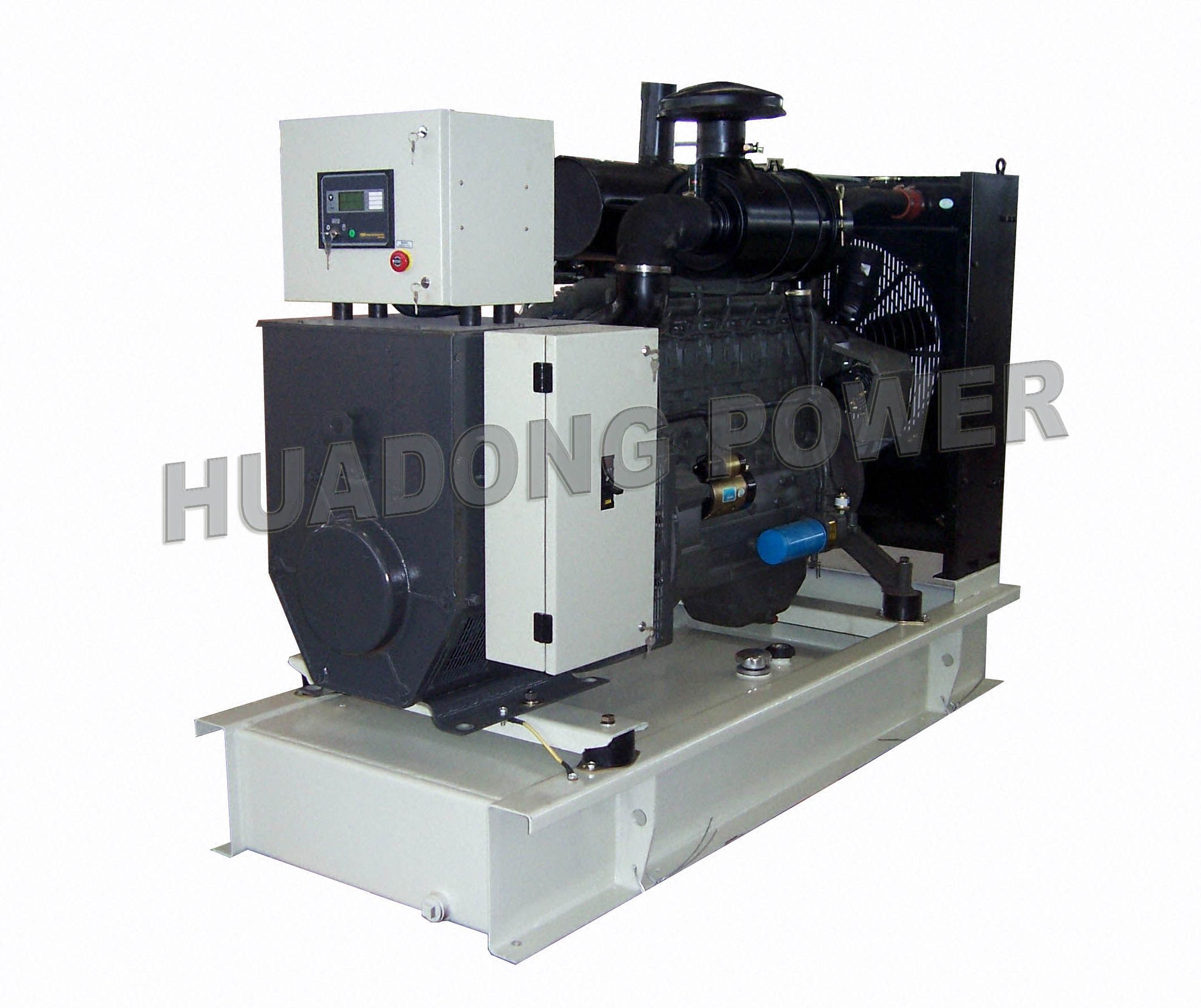

Deutz Generator Set 30KVA
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
ENGINE
DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-venture Company in China. With the technical improving, 226B series have been used and tested thousands of times in various mechanical and marine fields.
ALTERNATOR
Stamford alternators have been carefully selected to match the overload performance of the engine and incorporate the following: Screen protected and drip proof, self exciting, self regulating brushless alternator with fully interconnected damper windings, IC06 cooling system and sealed for life bearings, PMG fitted as standard on BCP 1000 models and above. Other brand alternators are available on request.
| (HUADONG)Data of Genset |
| Code | HDD30 | Date of Alternator | DEUTZ D226B-3D |
| Prime Power(KW/KVA) | 24KW / 30KVA | Alternator | STAMFORD BCI184G |
| Standby Power(KW/KVA) | 26KW / 33KVA | Control Panel | DSE501 or DSE7220 |
| Output Voltage(V) | 400/230 | Size(mm) | 1612X700X1254 |
| Start | 24V DC electric | weight(kg) | 620 |
| Frequency | 50Hz | Warrantty | 1 YEAR OR 1000HRS |
| Data of Engine | Date of Alternator |
| Manufacturer | DEUTZ | Code | D226B-3D | Manufacturer | STAMFORD | Type | BCI184G |
| Rated Speed | 1500/Rpm | Prime Power | 31KW | Capability | 30KVA | Exciting Mode | Brushless Self-excited |
| Cylinder | 3 IN LINE | Displacement | 3.12L | Insulation Class | H | Protection Class | IP23 |
| Type of Intake | AIR NATURE | Cooling Mode | Water cooled | Efficiency | 93.30% | Voltage Control | AVR |
| Accessories: |
| breaker, anti-vibration,base tank,24v batteries, battery wires,silencer, |
| manuals ,package,tool kit, spare parts(attached) etc. |
