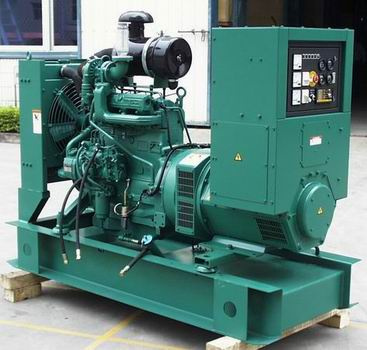

Specifications:
1) Output range: 18kW (22.5kVA) - 120kW (150kVA)
2) Engine models: D226B-3D, TD226B-3D, TD226B-4D, TD226B-6D, TBD226B-6D
3) Alternator: Stamford, Leroy Somer, Marathon
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires Alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤+/- 1 %
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Standard configuration of gensets
A) Engine: Deutz diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 C
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer
Packing:
Wooden case
Shandong Weichai Imp. & Exp. Corp. is the only import and export agent for Weichai Group which is the no. One of manaufacturer of diesel engine and generator sets in China. We provided diesel engine, generator sets, and agricultural machineries and other service as well.
Detailed:
As agent for Weichai Group, Shandong Weichai Import & Export Corporation(SWIEC) engages in import and export business, deals with all kinds of machinery equipment, mechanical and electrical instruments and complete plants; Undertakes joint venture projects, cooperative production and processing of raw materials on demands, on drawings, on assembling of components supplied; And compersation trade as well. Contracting with projects international and domestic bidding, deputizing services members for design, production, engineering, and maintenance and after sales service is also in its business activities.
SWIEC is firmly supported by a lot of famous manufacturing consortiums as its strong backup force, which can supply quality diesel engines for truck, generating set, marine, agriculture and engineering machinery use etc. SWIEC also associates with the first class firms of boiler, steam/gas turbine, water pump and first class designing institutes and specialized engineering companies, which forms a joint managed group woh secures its capability to contract and manage comprehensive engineering projects successfully.
Credit first; Excellent service; Equity and mutual benefit are our principles. We sincerely hope to initiate business relationship with all friends from domestic and abroad to strive for further co-development.
