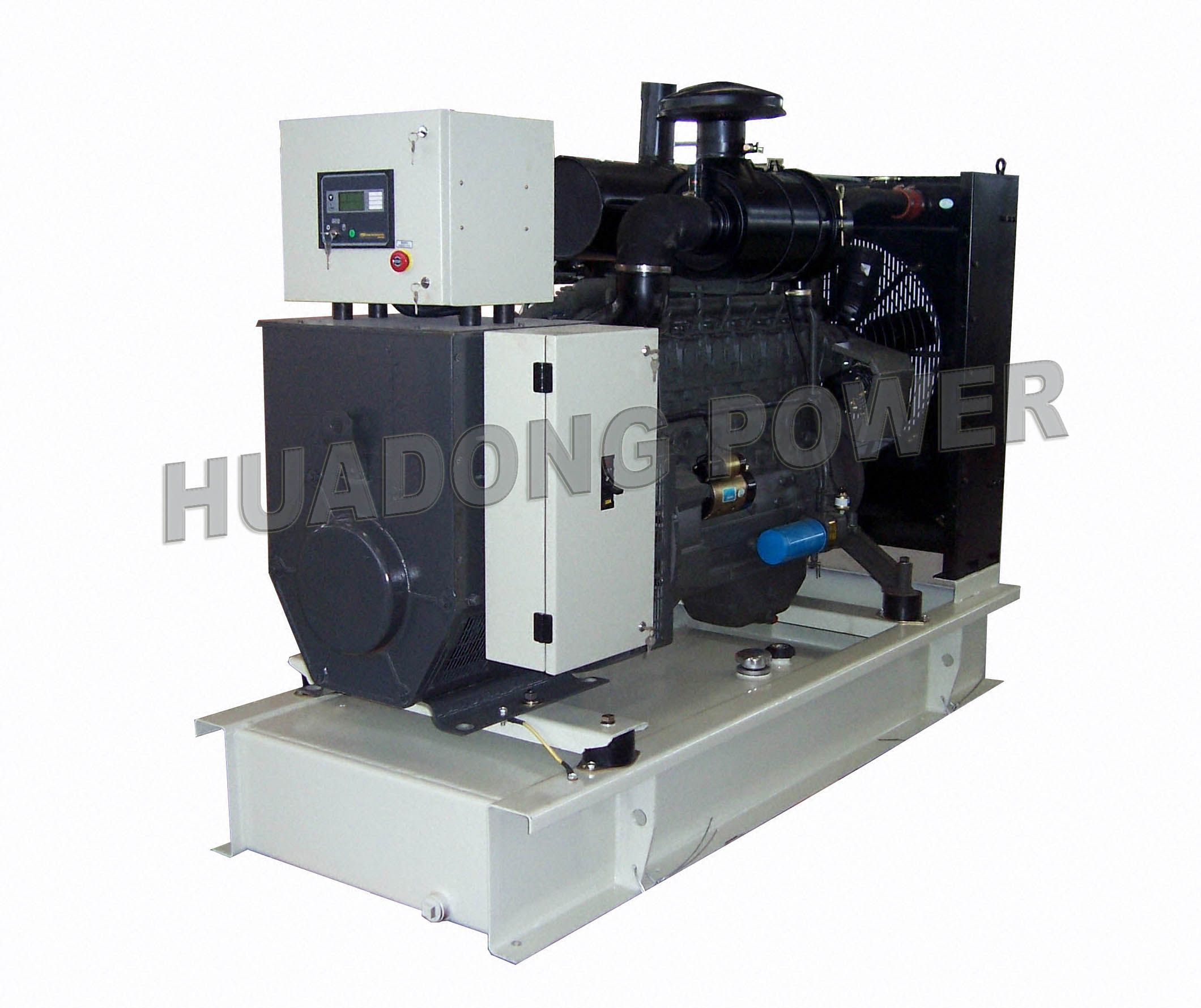

Deutz Generator Set 100KVA
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
ENGINE
DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-venture Company in China.With the technical improving, 226B series have been used and tested thousands of times in various mechanical and marine fields.
ALTERNATOR
Stamford alternators have been carefully selected to match the overload performance of the engine and incorporate the following:Screen protected and drip proof, self exciting, self regulating brushless alternator with fully interconnected damper windings, IC06 cooling system and sealed for life bearings, PMG fitted as standard on BCP 1000 models and above.Other brand alternators are available on request.
| (HUADONG)Data of Genset |
| Code | HDD100 | Date of Alternator | DEUTZ TD226B-6D |
| Prime Power(KW/KVA) | 80KW / 100KVA | Alternator | STAMFORD UCI274C |
| Standby Power(KW/KVA) | 88KW / 110KVA | Control Panel | DSE501 or DSE7220 |
| Output Voltage(V) | 400/230 | Size(mm) | 2205X800X1695 |
| Start | 24V DC electric | weight(kg) | 1150 |
| Frequency | 50Hz | Warrantty | 1 YEAR OR 1000HRS |
| Data of Engine | Date of Alternator |
| Manufacturer | DEUTZ | Code | TD226B-6D | Manufacturer | STAMFORD | Type | UCI274C |
| Rated Speed | 1500/Rpm | Prime Power | 90KW | Capability | 100KVA | Exciting Mode | Brushless Self-excited |
| Cylinder | 6 IN LINE | Displacement | 6.23L | Insulation Class | H | Protection Class | IP23 |
| Type of Intake | TURBO | Cooling Mode | Water cooled | Efficiency | 93.30% | Voltage Control | AVR |
| Accessories: |
| breaker, anti-vibration,base tank,24v batteries, battery wires,silencer, |
| manuals ,package,tool kit, spare parts(attached) etc. |
Yangzhou Huadong Power Machine Co., Ltd., located in Xiancheng industrial zone, Jiangdu district, Yangzhou city, Jiangsu province, P. R. China, is a high-tech private enterprise specializing in generators, diesel and gas generator sets' R & D, manufacturing, sales and service. The company covers an area of 100, 000 square meters, in which plant and office covers an area of 52, 000 square meters. The company is the designated manufacturing unit of diesel generator sets for the General Armament Department and General Logistics Department of PLA.
With over 30 years of R & D and manufacturing experience, Huadong power established the competitiveness to be involved in domestic and international market and the solid foundation in designing and providing power solutions for high-end customers and special user. 10 sets automatic, intelligent inspection platform with total capacity of 11600KW (the largest single testing capacity is 6500KW), can achieve multiple sets running in parallel, active and reactive detection and remote control, remote signaling detection. That provides a strong guarantee for the final inspection before products delivery.
The corporate culture--"Conduct and quality", is the criteria of every employee in life and work; The business philosophy --"strive to be the best instead of the biggest", always reminds each decision-maker that only step by step and pragmatic style of work enable enterprises to the steady and healthy development; The design concept-- "meticulous and reliable, low-carbon and environmental protection", is the eternal pursuit of the goal of our technology team; The service concept-- " fast, superb, standardized ", requires every employee to have a quick reaction speed, superb skills and standardized style of service and to spare no effort to solve the problem for each user.
Yangzhou Huadong Power Machine Co., Ltd. Has established a long-term strategic partnership with the world famous engine and generator manufactures such as CUMMINS, Volvo, SCANIA, MTU, PERKINS and STAMFORD etc. The "HUADONG" brand diesel generator set ranges from 24-2000KW and covers basic type, auto-starting type, auto-switching type, parallel running type, weather-proof type, trailer type, sound proof type and vehicle power station type etc. Nowadays, "HUADONG" brand generator sets play an irreplaceable role in key projects in domestic and international market in a variety of areas.
