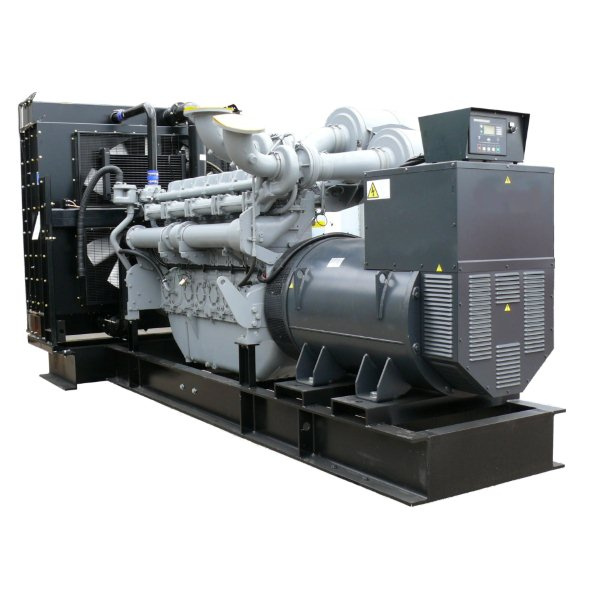

Deutz Diesel Power Generator
First, Detail description of Genset powered by Deutz Engine.
1)Output range: 20kW--1700kW
2)Sound attenuated enclosure: Special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability.
3)Alternator: Stamford/Leroy Somer/Marathon
4)Water-cooled
5)Above 8 hours operation base tank
6)Key start/Auto Start
7)Sound-proof/weather-proof canopy is optional, the sound level can be 60dB to 75dB at 7 meters
8)230V/400V, 220V/480V, 50Hz/60Hz, 1500rpm/1800rpm, 0.8PF, AC three phase and 4 wires
9)Frequency: 50Hz/60Hz
10)Frequency at stable state: < 0.5%
11)Frequency deviation at instantaneous state: D+10%
12)Frequency return time: D3s
13)Voltage deviation at stable state: D ± 1%
14)Voltage deviation at instantaneous state: D+20%
15)Voltage return time: D4s
16)Voltage modulation: D0.3%
17)Standard configuration of generator sets:
A)Engine: Cummins, Man, Kubota, Isuzu, Volvo, Deutz, MTU, Lovol, etc.
B)Engine character: Water-cooled, in line four-stroke, direct injection
C)Alternator: Brushless and Hclass insulation
18)Control System:
A)Automatic alarm system: The unit has the acousto-optics alarm and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B)Operation display:
I)Unit voltage, tri-phase load current and frequency display
Ii)Water temperature, oil pressure display
Iii)Fuel level, fuel temperature display
Iv)Audible and visual alarm lamps and buzzers
19)Starting system: DC alternator is used to start engine
20)Short circuit protection: MCCB air switch
21)Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40
22)Filter system: Oil, fuel and air filter
23)Accessories: Exhaust elbow, bellow, muffler.
Our company have specialized in manufacturing the generator set for many years. We have exported our products to many countries, like the Indonesia, South Africa, and so on.
Produce the different kinds of the generator set: Cummins, deutz, Volvo. Mtu, Weichai, Shanghai, wudong, yangdong and so on.
For the alternator, we could supply you the leroy somer, stamford, and China made alternator.
Type: Open type, silent type and the container type.
In a word, we make the generator set according to our clents' requirements.
